QSW-6900-56F

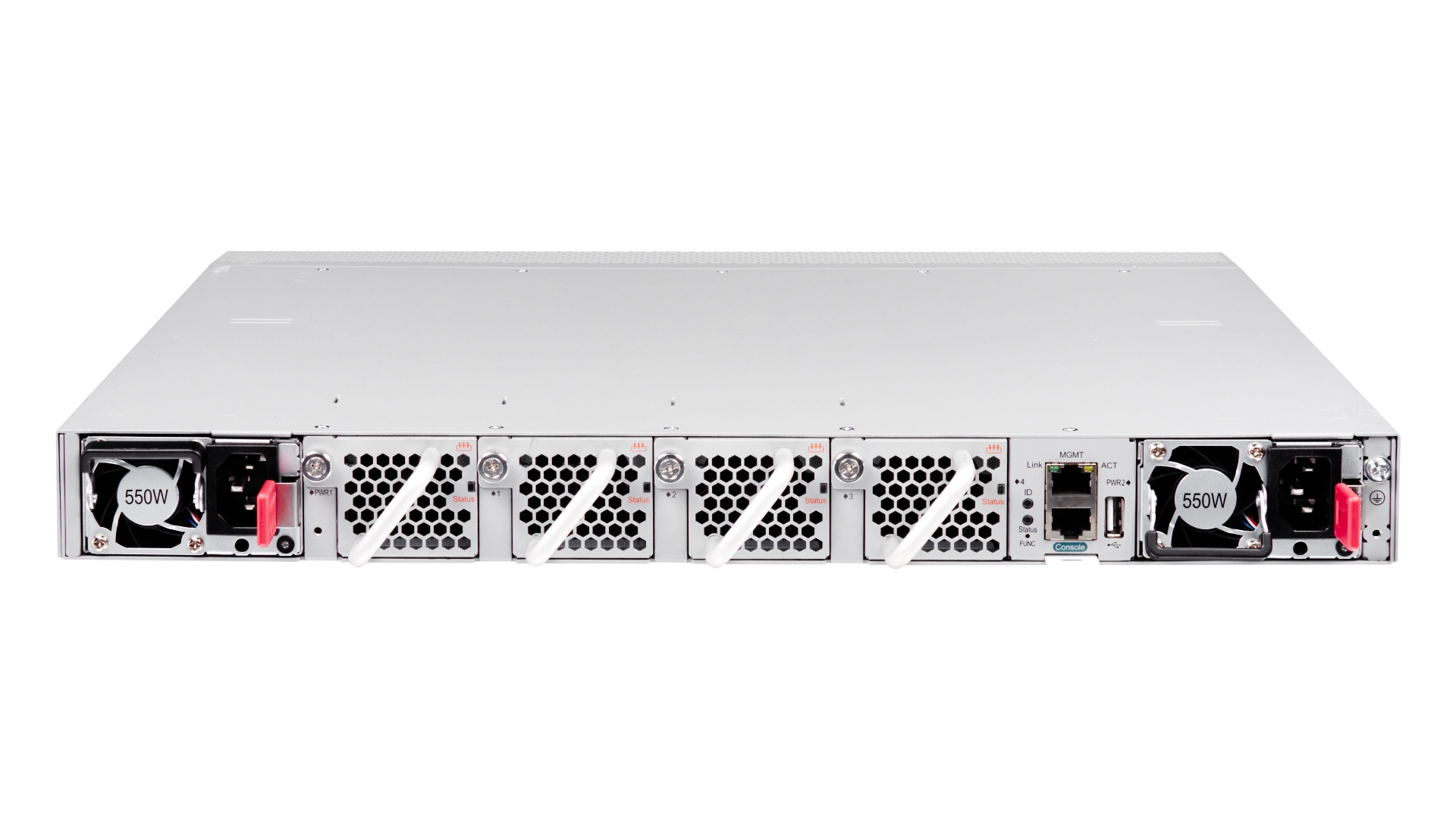

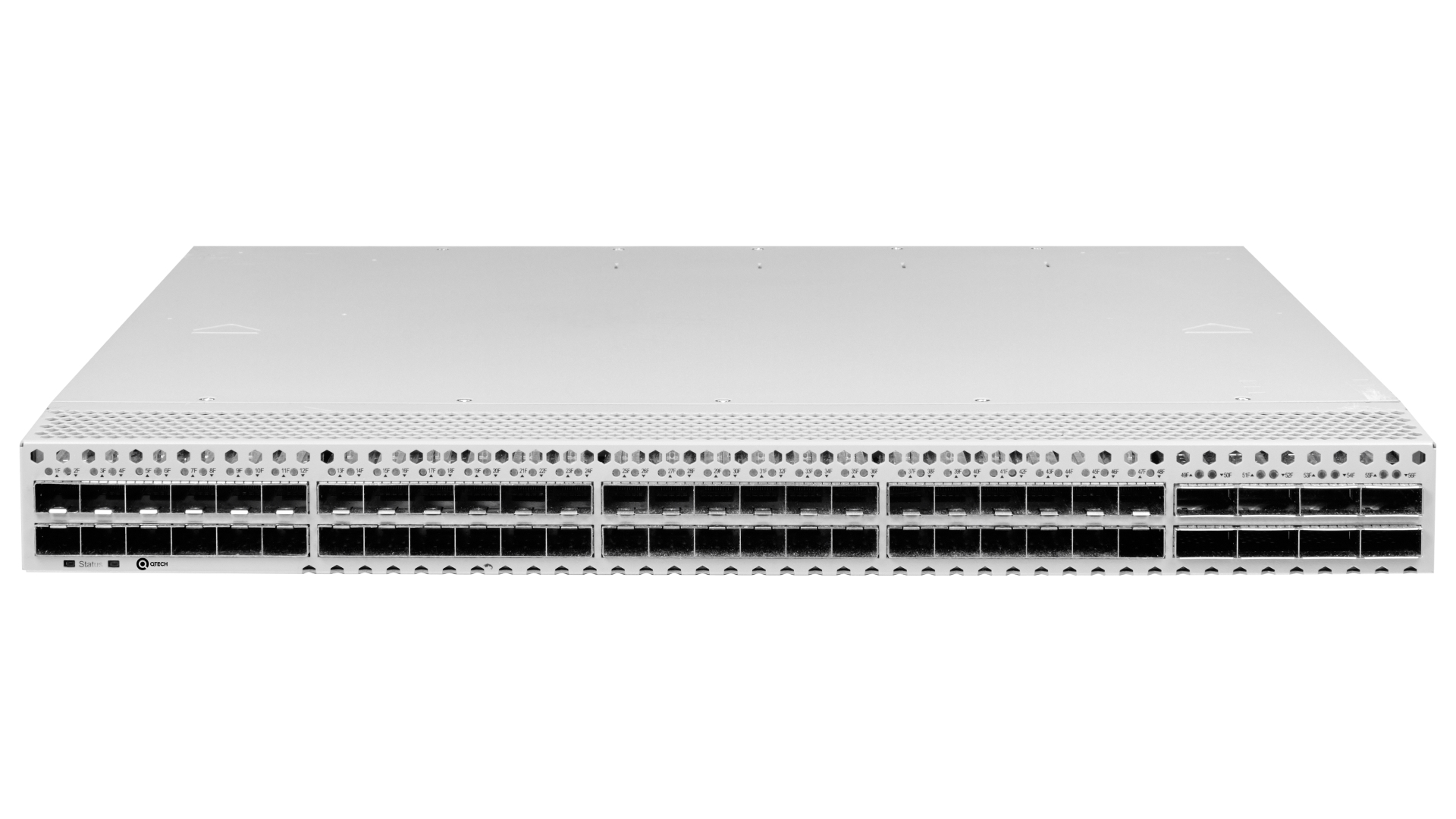

Managed stackable L3 switch, 8 100GbE QSFP28 ports, 48 25GbE SFP28 ports, 96K MAC addresses, 1 USB 2.0 port, console port, MGMT management port, 2 replaceable PSUs (sold separately), 100-240V, 192-288V AC/DC , dimensions WxDxH (442x420x44 mm)
Interfaces
| Console ports | 1 port RS-232 (RJ45) |
| Managment ports | 1 port |
| USB interface | 1 port USB 2.0 |
Performance
| Switching capacity | 4.0 Tbps |
| MAC address table | 96K |
| Routing table | Up to 28K |
Functionality
| DHCP | DHCP server, DHCP client, DHCP snooping, DHCP relay, IPv6 DHCP relay |
| Spanning Tree Protocols | IEEE802.1d (STP), IEEE802.1w (RSTP), IEEE802.1s (MSTP), TC protection, Loop guard, Root guard, Spanning Tree Root Guard(STRG) |
| VLAN | 4K VLANs, Port-based VLAN, MAC-based VLAN, Super VLAN, Protocol-based VLAN, Private VLAN, IP, subnet-based VLAN, GVRP |
| ACL | Standard/Extended/Expert ACL, Extended MAC ACL, ACL 80, Ipv6 ACL |
| Port aggregation | Up to 255 groups, up to 16 ports per group |
| Traffic mirror | Many-to-one mirroring, One-to-many mirroring, Flow-based mirroring, Over devices mirroring, VLAN-based mirroring, VLAN-filtering mirroring, AP-port mirroring, RSPAN, ERSPAN |
| Routing protocols IPv4 | Ping, Traceroute, Equal-cost routing, URPF, IPIP, GRE tunnel, VRF |
| Routing protocols IPv6 | Static routing, Equal-cost routing, Policy routing, RIPng, OSPFv2/v3, BGP4+, IS-IS |
| Redundancy protocols | VSU (virtualization technology for virtualizing multiple devices into 1); GR for OSPF/IS-IS/BGP; BFD detection; fast switching technology REUP, RLDP (Rapid Link Detection Protocol); power redundancy 1+1; fan redundancy 2+1; hot-swappable power modules, Dynamic ARP Inspection(DAI), de-stacking |
| Stacking feature | Yes |
| Level | L3 |
| L2 features | Control, IGMP v1/v2/v3 snooping, IGMP filter, IGMP fast leave, MLD snooping, DHCP, Jumbo frame, RLDP, control, IGMP v1/v2/v3 snooping, IGMP filter, IGMP fast leave, MLD snooping, DHCP, Jumbo frame, RLDP, LLDP |
| Management protocols | SNMPv1/v2c/v3; CLI (Telnet/Console); hardware support for RCMI (combo interface for MGMT); RMON; SSHv1/v2; FTP/TFTP for uploading and managing files; NTP; syslog; SPAN/RSPAN |
Physical characteristics
| MTBF | 330,000 hours |
Power supply
| Voltage, V | 100-240В, 192-288В |
| Max. power consumption, W | 300 |
| Power adapters | 2 replaceable power supply (independently) |
| Power | AC/DC |
Performance specifications
| Working temperature | 0°C~+45°C |
| Humidity | 90% non-condensing |
| Storage temperature | -40°C~+70°C |
Dimensions
| Height, mm | 44 |
| Depth, mm | 420 |
| Width, mm | 442 |
| Weight, kg | 10 |
