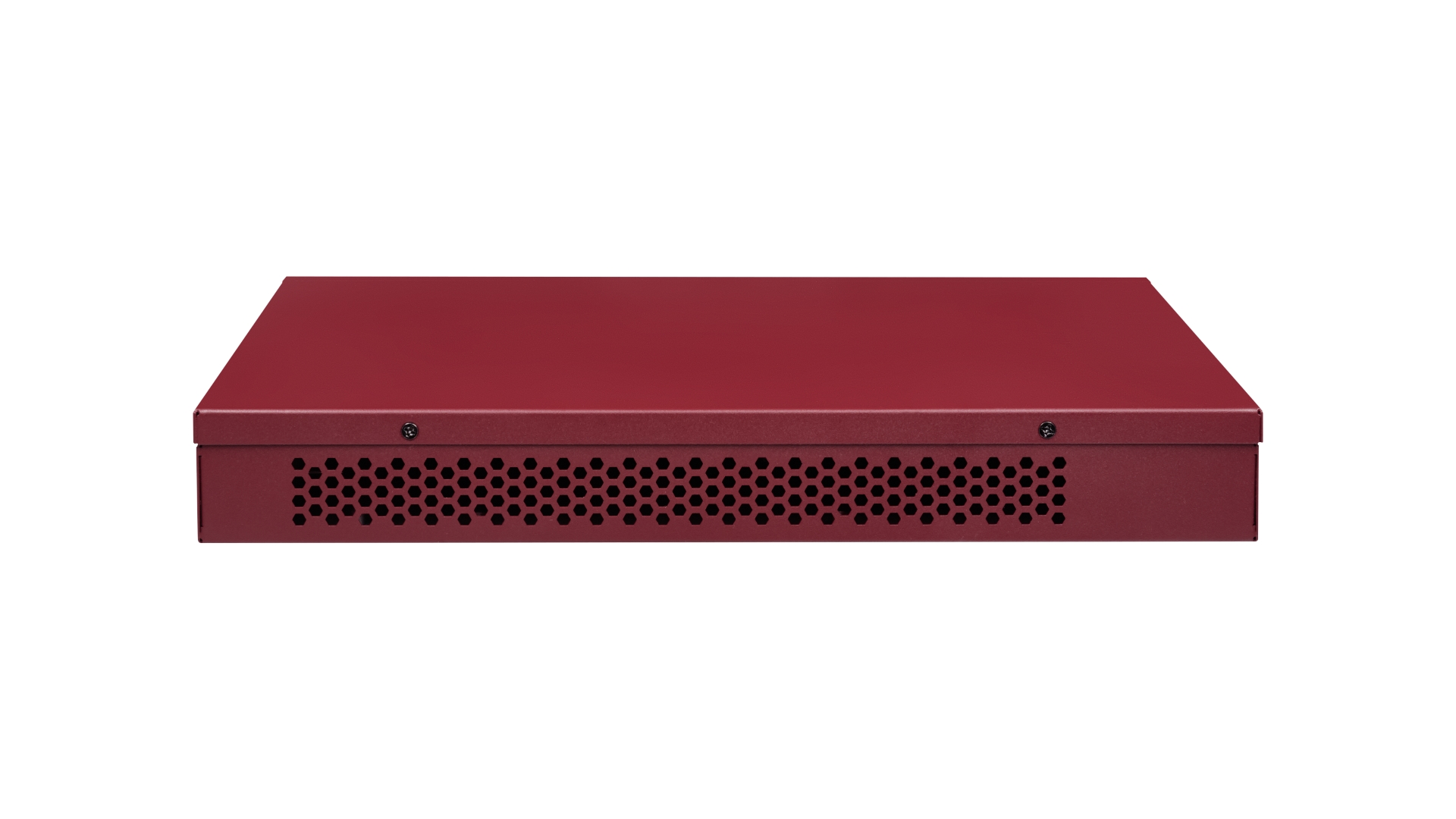

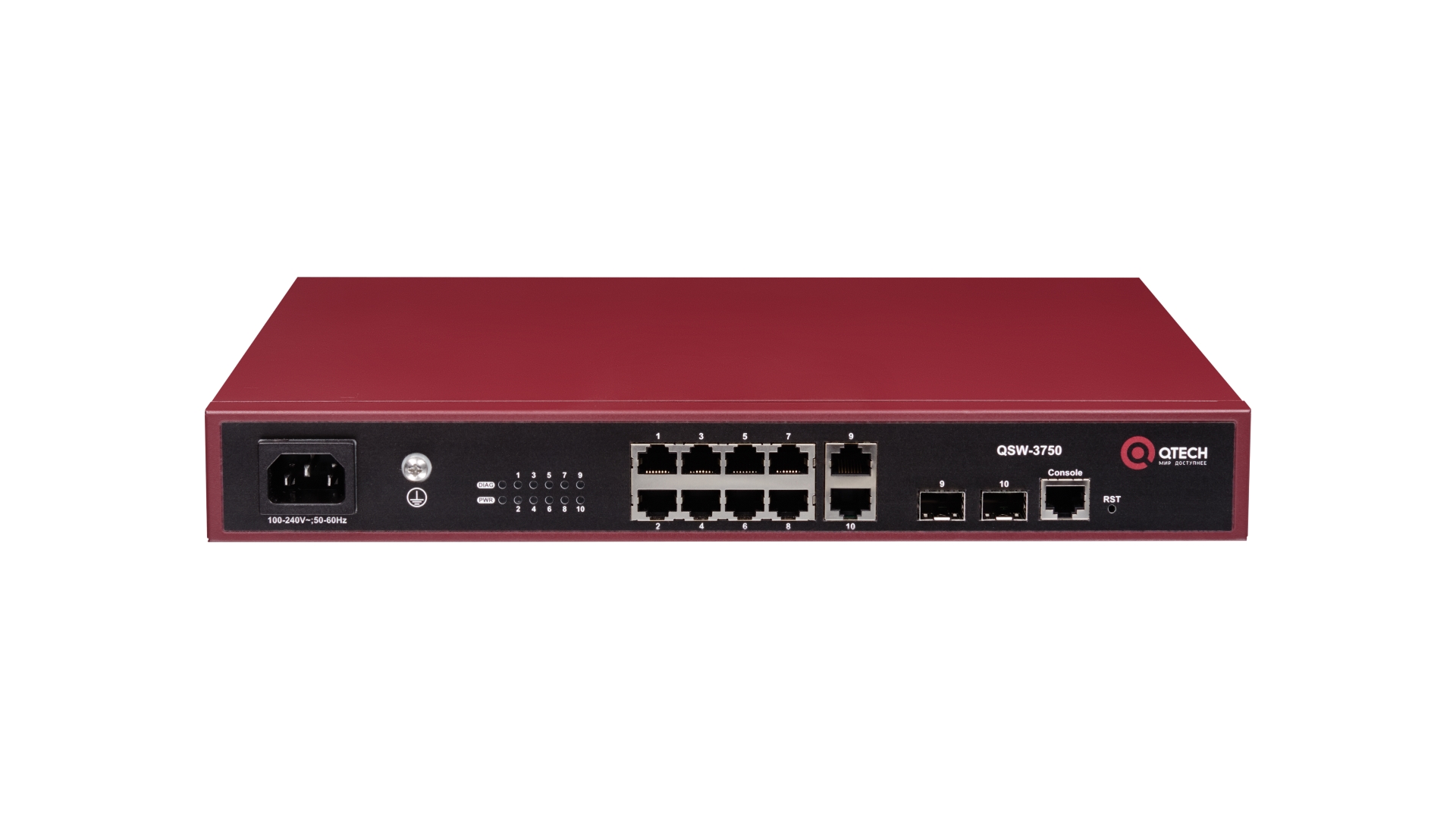

QSW-3750-10T-AC-R
Managed L2+ switch, 8 10/100/1000BASE-T ports, 2 combo 1000BASE-T\SFP ports, 4K VLAN, 8K MAC addresses, console port, built-in power supply, front panel power connector, 100-240V AC, dimensions WxDxH (335x220x44 mm)
Description
The QSW-3750 rev. R series of switches is a series of multifunctional high-performance switches with enhanced security. The switches of this series have excellent design, reliability and ease of use. The basic functionality of the switches fully complies with global requirements for building reliable access level networks.
A wide range of models allows you to choose a solution that best meets customer requirements. All switches are built on a modern hardware base and undergo thorough testing at all stages of production.
The switches connect end users to the network of large enterprises, small and medium businesses. This series is an excellent solution for building private, secure networks.
Key features:
A wide range of models allows you to choose a solution that best meets customer requirements. All switches are built on a modern hardware base and undergo thorough testing at all stages of production.
The switches connect end users to the network of large enterprises, small and medium businesses. This series is an excellent solution for building private, secure networks.
Key features:
- Comprehensive QoS provides the highest priority for such critical data as video and voice traffic.
- The Voice-VLAN functionality will automatically prioritize all subscriber voice traffic.
- Powerful security tools such as IP source guard, DHCP snooping and ARP inspection allow you to effectively detect and block network attacks by intruders.
Interfaces
| Ports 10/100/1000BASE-T | 8 ports |
| Ports combo 1000BASE-T\SFP | 2 ports |
| Console ports | 1 port RS-232 (RJ45) |
Performance
| Jumbo Frame | 10 KB |
| Switching capacity | 20 Gbps |
| Packet Forwarding Rate | 15 Mpa/s |
| MAC address table | 8K |
| Routing table | 128 |
Functionality
| DHCP | IPv4/IPv6 DHCP Client, IPv4/IPv6 DHCP Server, IPv4/IPv6 DHCP Snooping DHCP Relay Option 82, DHCPv6 Relay Option 37/38 |
| Green Ethernet | IEEE 802.3az (Energy Efficient Ethernet) |
| VLAN | IEEE802.1Q, Voice VLAN, Port-based VLAN, Protocol-based VLAN, MAC-based VLAN Private VLAN, QinQ, VLAN Mapping 1 to 1, N to 1, GVRP |
| VLAN features | 4K VLAN |
| ACL | IPv4 standard ACL, IPv4 extended ACL, IPv4 multicast ACL, IPv6 standard ACL, IPv6 extended ACL, IPv6 multicast ACL, MAC standard ACL, MAC extended ACL, MAC-IP extended ACL, Time based ACL |
| Port aggregation | 8 groups / 8 ports |
| Traffic mirror | Port Mirror, CPU Mirror, RSPAN |
| Redundancy protocols | 802.1D STP, 802.1W RSTP, 802.1S MSTP, LACP, MRPP, ERPS, CFM |
| Level | L2+ |
| Management protocols | TFTP/FTP, SNMPv1/v2c/v3, SNMP Trap, DyingGasp, CLI (Console / Telnet / SSH), Web/SSL, Public & Private MIB interface RMON (1,2,3,9), Ping, Trace Route, Syslog, SNTP/NTP, Dual IMG, Multiple Configuration Files, VCT, DDM, ULDP, LLDP/LLDP MED |
Physical characteristics
| EMC safety | CE, RoHS |
| MTBF | > 80,000 hours |
| Surge protection | 4 kW |
Cooling
| Cooling | passive |
Power supply
| Voltage, V | 100-240 |
| PoE | yes |
| PoE+ | yes |
| Power supply type | AC |
| Max. power consumption, W | 20 |
| Power adapters | Integrated power supply |
Performance specifications
| Working temperature | 0°C~+50°C |
| Humidity | 95% non-condensing |
| Storage temperature | -40°C~+70°C |
Dimensions
| Height, U | 1 |
| Height, mm | 44 |
| Depth, mm | 220 |
| Width, mm | 335 |
| Weight, kg | 1.7 |
