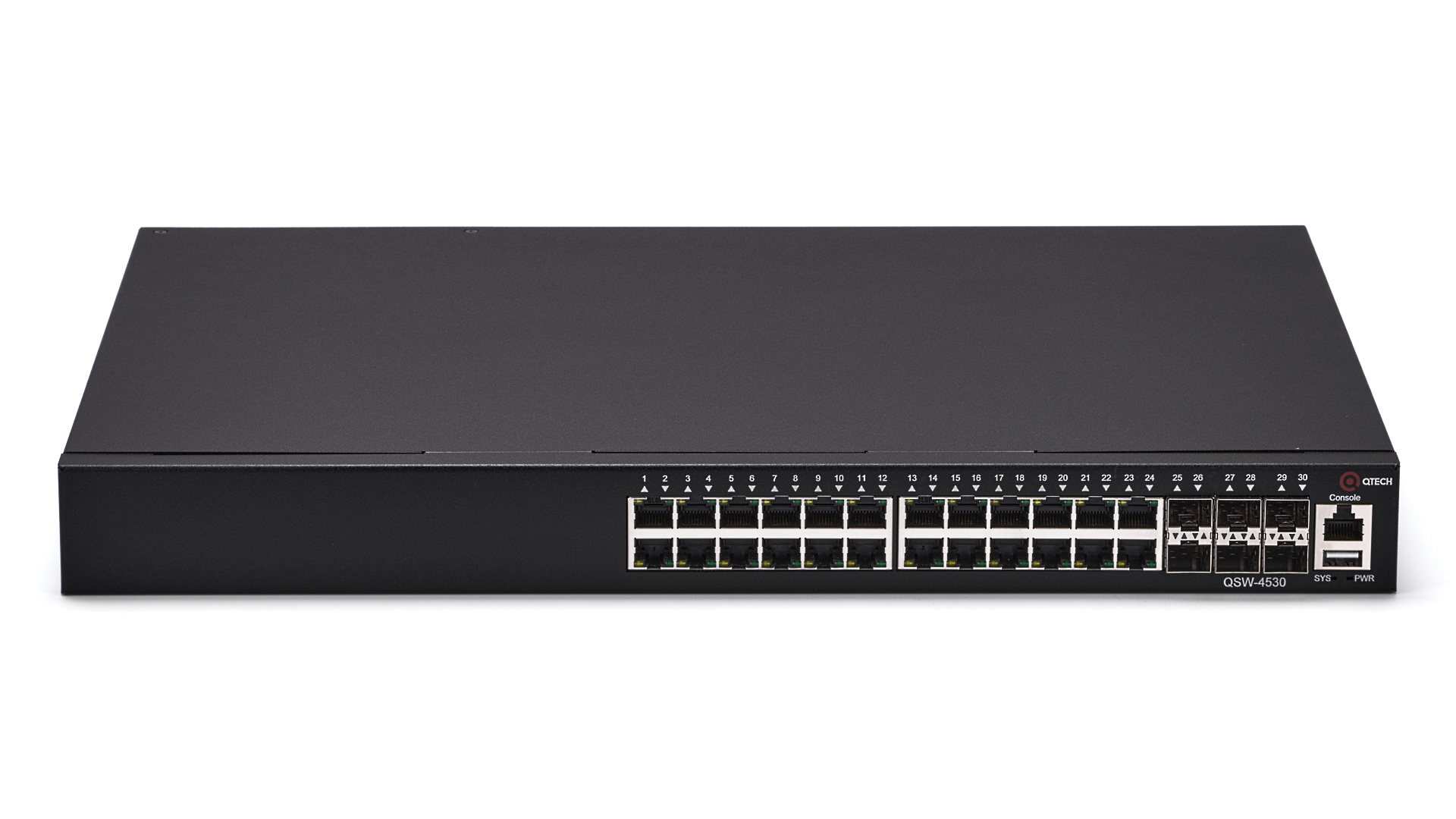

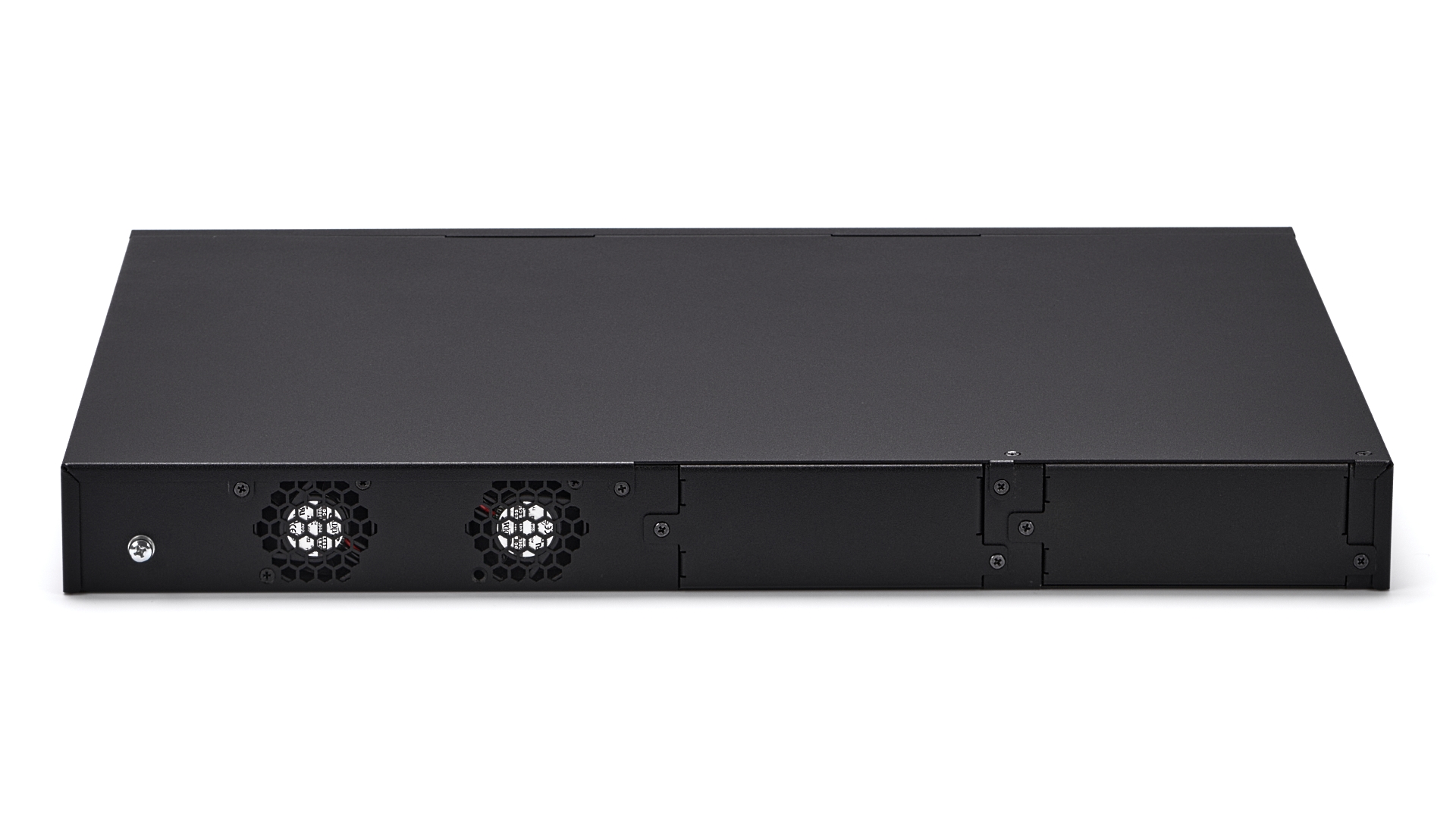

QSW-4530-30TX-POE
Managed stackable L3 switch with PoE 802.3af/at support, 24 10/100/1000BASE-T PoE ports, 6 10GbE SFP+ ports, 4K VLAN, 32K MAC addresses, 1 USB 2.0 port (on the front panel), console port, 2 replaceable power supplies, rear panel power connector, 100-240V AC, dimensions WxDxH (440x368x44 mm)
Description
The QSW-4530 series managed Gigabit L3 switch is designed specifically for telecom operators and MAN networks.
The series switches support the following functionality:
Ease and flexibility in operation, management and maintenance
Enhanced security
The series switches support the following functionality:
- comprehensive QoS;
- advanced VLAN functions (VLAN VPN, Voice VLAN, QinQ, etc.);
- bandwidth management;
- intelligent security management;
- Ethernet OAM (Operations, Administration, Maintenance) standards;
- management functions and Triple Play services that meet the requirements of operator networks and MAN networks.
Ease and flexibility in operation, management and maintenance
- Full support for Ethernet OAM (IEEE802.3ah/802.1ag* standard), VCT, DDM (Digital Diagnostic Monitoring) and other functions for quick detection of network failures and reducing the complexity of operation and maintenance of switches
Enhanced security
- BPDU Guard and Root Guard to prevent loops in the topology and unauthorized access to the network;
- support for IEEE 802.1X standard for authentication and authorization of users using RADIUS server;
- support for ACL, used to restrict access to network resources by rejecting and filtering packets according to specified policies;
- use of DHCP Snooping to prevent DHCP attacks and the use of fake DHCP servers by setting trust and untrust ports;
- support for L3 security functions, such as Dynamic ARP inspection, Port security and other ARP and MAC security functions to protect the network.
- Support for STP, RSTP, MSTP, Root Guard, BPDU Filtering, etc.
- Support for 802.1Q standard and creation of port-based VLAN, MAC-based VLAN, Voice VLAN and Protocol VLAN.
- Extensive support for QinQ technology, including Basic QinQ and Selective QinQ, which provides maximum flexibility in setting QinQ policies.
- Support for the VLAN Translation function, which allows multiple VLAN tags to be transmitted in frames from an access port to a specified VLAN tag, enabling reliable technical support for QoS policy convergence.
- Support for the MVR (Multicast VLAN Register) protocol, which allows selective transmission of multicast traffic between different VLANs to improve network throughput and security.
- Support for IGMP Snooping prevents flooding in multicast traffic.
- Support for IGMP Filtering allows you to create rules that restrict user access to specific multicast groups.
Interfaces
| Ports 10/100/1000BASE-T PoE | 24 ports |
| Ports 10GbE SFP+ | 6 ports |
| Console ports | 1 port RS-232 (RJ45) |
| USB interface | 1 port USB 2.0 (front panel) |
Performance
| Jumbo Frame | 12К |
| Switching capacity | 168 Gbps |
| Packet Forwarding Rate | 125 Mpa/s |
| MAC address table | 32K |
| Routing table | 12K |
Functionality
| DHCP | IPv4/IPv6 DHCP Client, IPv4/IPv6 DHCP Server, IPv4/IPv6 DHCP Snooping, DHCP Relay Option 82, DHCPv6 Relay Option 37/38 |
| Green Ethernet | IEEE 802.3az (Energy Efficient Ethernet) |
| VLAN | IEEE802.1Q, Voice VLAN, Port-based VLAN, Protocol-based VLAN, MAC-based VLAN Private, VLAN, QinQ, VLAN Mapping 1 to 1, N to 1, GVRP |
| VLAN features | 4K VLAN |
| ACL | IPv4 standard ACL, IPv4 extended ACL, IPv4 multicast ACL, IPv6 standard ACL, IPv6 extended ACL, IPv6 multicast ACL, MAC standard ACL, MAC extended ACL, MAC-IP extended ACL, Time based ACL |
| QoS | 8 queues per port; 802.1p/DSCP/TOS traffic marking; Queue processing algorithms: SP (Strict Priority); WRR (Weighted Round Robin), WDRR (Weighted Deficit Round Robin), SP+WRR, SP+WDRR; Congestion avoidance method: Tail drop; Traffic limitation on ports |
| Port aggregation | 128 groups/8 ports |
| Traffic mirror | Port Mirror, CPU Mirror, RSPAN |
| Redundancy protocols | 802.1D STP, 802.1W RSTP, 802.1S MSTP, LACP, MRPP, ERPS, CFM |
| Stacking feature | Yes |
| Level | L3 |
| Management protocols | TFTP/FTP/SFTP, SNMPv1/v2c/v3, SNMP Trap, DyingGasp; CLI (Console/Telnet/SSH), Web/SSL; Public & Private MIB interface RMON (1,2,3,9), Ping, Trace Route; Syslog, SNTP/NTP, Dual IMG, Multiple Configuration Files, VCT, DDM, ULDP, LLDP/LLDP MED, sFlow |
Physical characteristics
| MTBF | >80,000 hours |
Cooling
| Cooling | active |
Power supply
| Voltage, V | 100-240 |
| PoE | Yes |
| PoE+ | Yes |
| Max. power consumption, W | 765 |
| The maximum PoE power of the consumers, W | 720 |
| Power adapters | 2 removable power supply |
| Power | АС |
Performance specifications
| Working temperature | 0°C~+50°C |
| Humidity | 95% non-condensing |
| Storage temperature | -40°C~+70°C |
Dimensions
| Height, mm | 44 |
| Depth, mm | 368 |
| Width, mm | 440 |
| Weight, kg | 4.5 |
