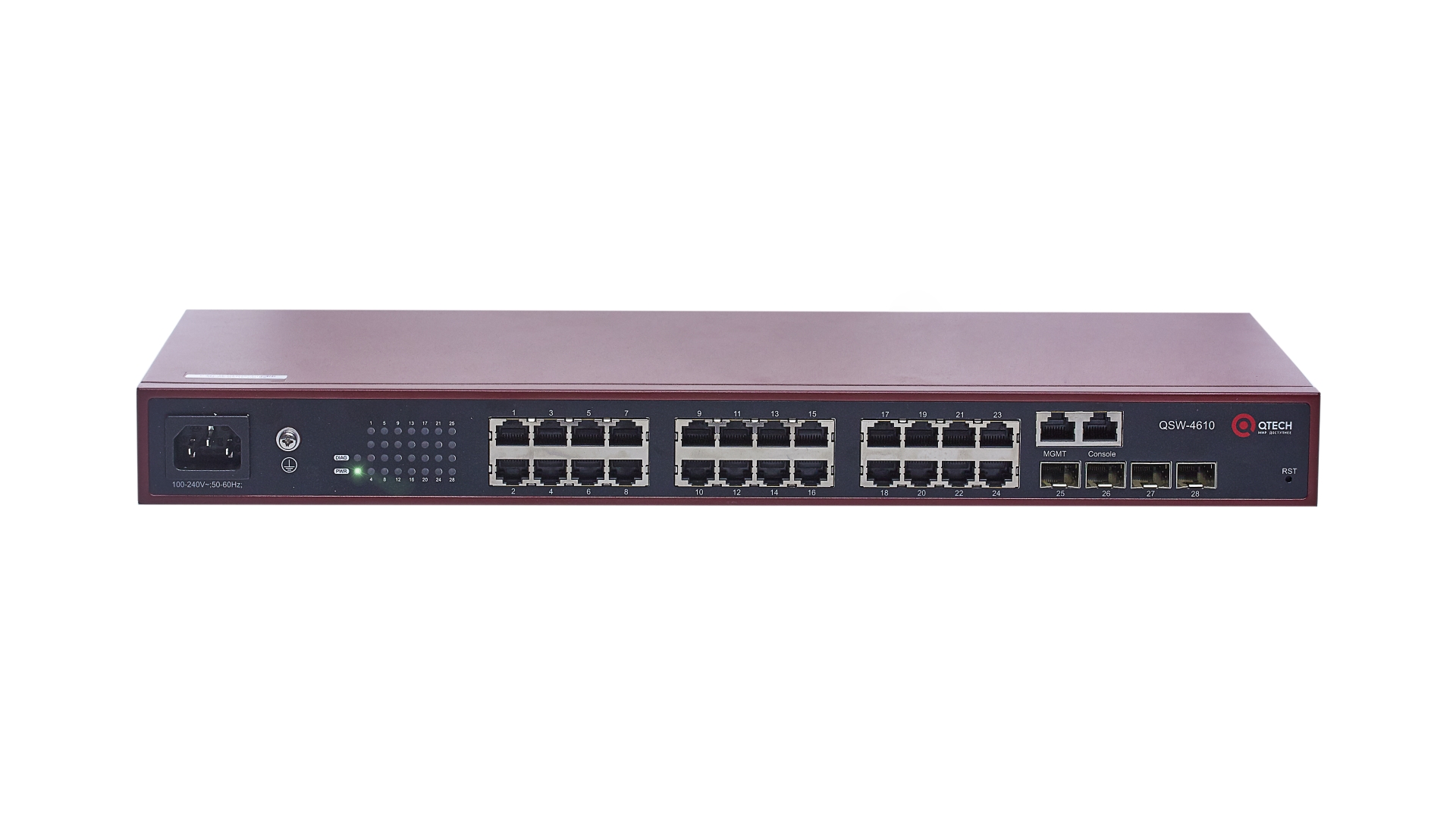

QSW-4610-28TX-AC

Vendor code: Q00007414

Managed ethernet switch L2+, 24 ports 10/100/1000BASE-T, 4 ports 10GbE SFP+, 4K VLAN, 16K MAC addresses, console port, management port MGMT, inbuilt power adapter, 100-240V AC

Distinctive features

Security

Storm Control на основе пакетов и байтов; BPDU Guard, BPDU Filter, Root Guard, Loop Guard, TC-protection, Loopback-detection; Port...

Storm Control на основе пакетов и байтов; BPDU Guard, BPDU Filter, Root Guard, Loop Guard, TC-protection, Loopback-detection; Port Security, Dynamic ARP Inspection, Anti-ARP-Scan, IP Source Guard; IEEE 802.1x, Authentication, Authorization, Accounting Radius, TACACS+, RADIUS

QoS

8 очередей на port; Маркировка трафика 802.1p/DSCP/TOS; Алгоритмы обработки очередей: SP, WRR, WDRR, SP+WRR, SP+WDRR; Метод conges...

8 очередей на port; Маркировка трафика 802.1p/DSCP/TOS; Алгоритмы обработки очередей: SP, WRR, WDRR, SP+WRR, SP+WDRR; Метод congestion avoidance: Tail drop; Ограничение трафика на portsх

Multicast

IGMP v1/v2/v3 snooping, IGMP filter, IGMP Fast-leave, MVR, MLD v1/v2 snooping, PIM

Interfaces

Ports 10/100/1000BASE-T	24 ports
Ports 10GbE SFP+	4 ports
Console ports	1 port RS-232 (RJ45) (front panel)
Managment ports	Yes (front panel)

Performance

Jumbo Frame	16K
Switching capacity	128 Gbit/s
Packet Forwarding Rate	96 Mpps
MAC address table	16K
Routing table	512

Functionality

DHCP	IPv4/IPv6 DHCP Client, IPv4/IPv6 DHCP Server, IPv4/IPv6 DHCP Snooping, DHCP Relay Option 82, DHCPv6 Relay Option 37/38
Green Ethernet	IEEE 802.3az (Energy Efficient Ethernet)
VLAN	IEEE802.1Q, Voice VLAN, Port-based VLAN, Protocol-based VLAN, MAC-based VLAN, Private VLAN, QinQ, VLAN Mapping 1 to 1, N to 1, GVRP
VLAN features	4K VLAN
ACL	2048
QoS	8 очередей на port; Маркировка трафика 802.1p/DSCP/TOS; Алгоритмы обработки очередей: SP, WRR, WDRR, SP+WRR, SP+WDRR; Метод congestion avoidance: Tail drop; Ограничение трафика на portsх
Port aggregation	128 групп / 8 ports
Traffic mirror	Port Mirror, CPU Mirror, RSPAN
Redundancy protocols	802.1D STP, 802.1W RSTP, 802.1S MSTP, Stack, LACP, MRPP, ERPS, CFM, VRRP
Stacking feature	Yes
Level	L2+

Physical characteristics

Surge protection	6 kW
Type	управляемый

Cooling

passive

Power supply

Voltage, V	100-240
Power supply type	AC
Max. power consumption, W	23
Power adapters	Integrated power supply

Performance specifications

Working temperature	0°C~+50°C
Humidity	95% non-condensing
Storage temperature	-40°C~+70°C

Dimensions

Height, U	1
Height, mm	44
Depth, mm	200
Width, mm	440
Weight, kg	2,2

Logistics

Packing weight, kg	5
Packing height, mm	95
Packing length, mm	555
Packing width, mm	307
