QSW-4610-52T-AC
QSW-4610-52T-AC
Side view
QSW-4610-52T-AC
View full size photo
QSW-4610-52T-AC

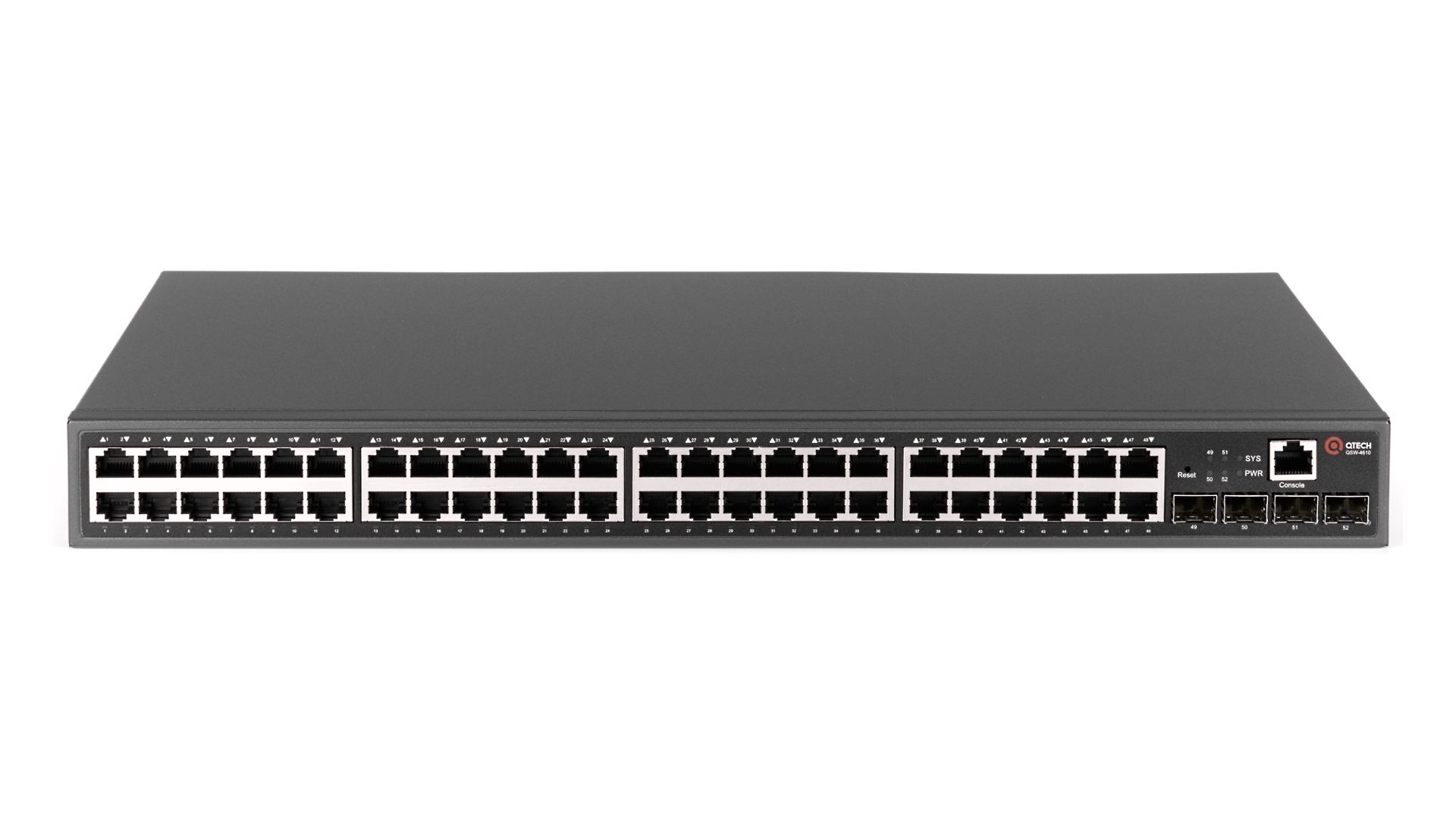

Front view
QSW-4610-52T-AC
View full size photo
QSW-4610-52T-AC

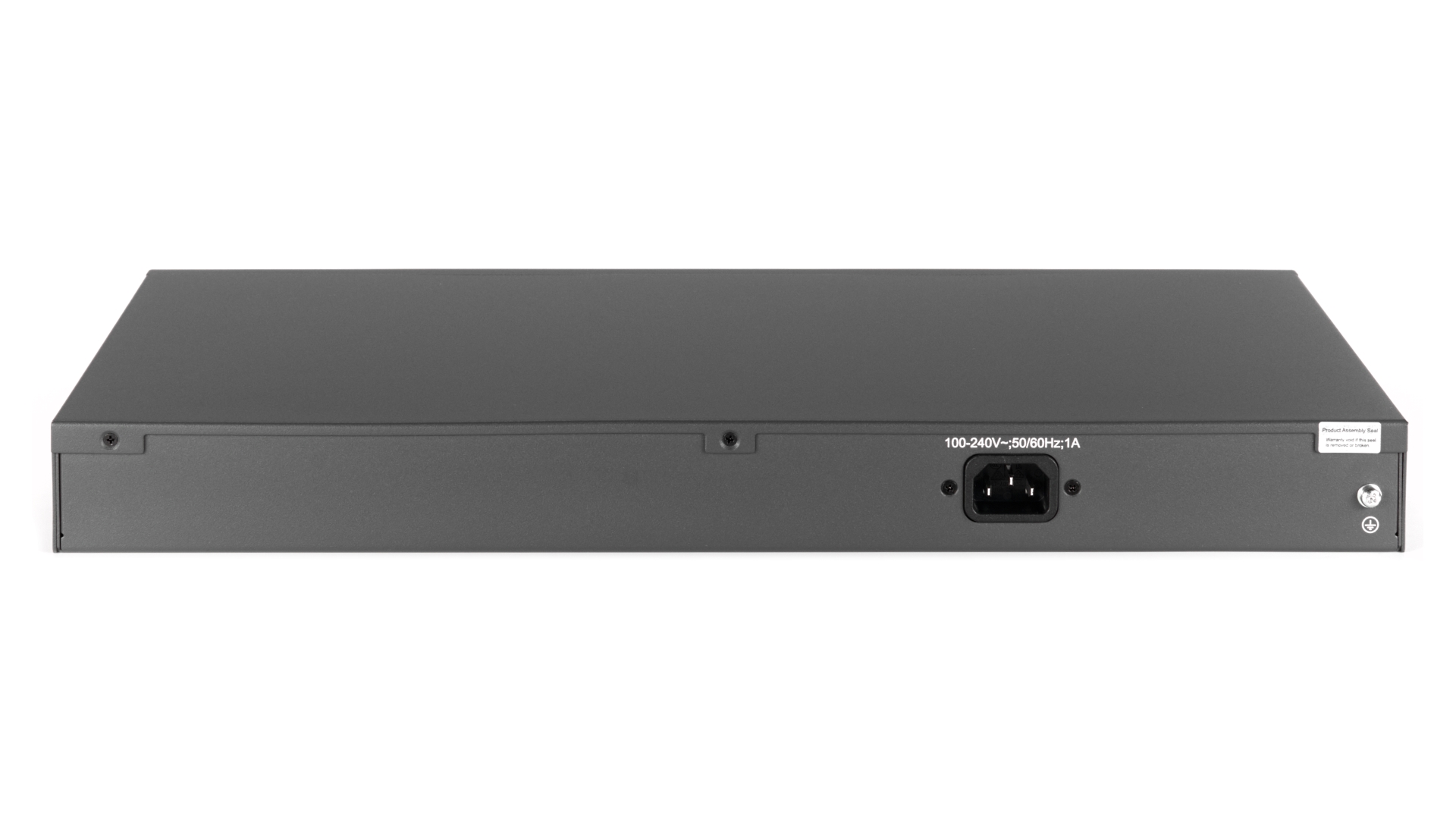

Back view
QSW-4610-52T-AC
View full size photo

QSW-4610-52T-AC

Vendor code: Q00007410
Managed ethernet switch L2+, 48 ports 10/100/1000BASE-T, 4 ports 100/1000BASE-X SFP, 4K VLAN, 16K MAC addresses, console port, inbuilt power adapter, 100-240V AC
Description
Back to
Description Characteristics Download
Distinctive features
Security
Storm Control на основе пакетов и байтовPort Security, Лимит MAC на основе VLAN и ports, Anti-ARP-Spoofing , Anti-ARP-Scan, ARP Bi...
Storm Control на основе пакетов и байтовPort Security, Лимит MAC на основе VLAN и ports, Anti-ARP-Spoofing , Anti-ARP-Scan, ARP BindingND Snooping, DAI, IEEE 802.1xAuthentication, Authorization, AccountingRadius, TACACS+
QoS
8 очередей на port, Bandwidth Control, Flow RedirectКлассификация на основе ACL, VLAN ID, COS, TOS, DSCP,Ограничение на основе por...
8 очередей на port, Bandwidth Control, Flow RedirectКлассификация на основе ACL, VLAN ID, COS, TOS, DSCP,Ограничение на основе ports и VLAN, Single Rate single barrel double color for Policing,Remark DSCP, COS/802.1p, Precedence, TOSSP, WRR, SWRR, DWRR for Scheduling,Match the IP fragmentation of message
Multicast
IGMP v1/v2/v3 snooping, IGMP Fast leave, MVR, MLD v1/v2 snooping, IPv4/IPv6 DCSCM
IGMP v1/v2/v3 snooping, IGMP Fast leave, MVR, MLD v1/v2 snooping, IPv4/IPv6 DCSCM

Interfaces
Ports 10/100/1000BASE-T 48 ports
Ports 100/1000BASE-X SFP 4 ports
Console ports 1 port RS-232 (RJ45)
Performance
ACL 2048
Jumbo Frame 12K
Switching capacity 104 Gbit/s
Packet Forwarding Rate 78 Mpps
MAC address table 16K
Routing table 128
Functionality
DHCP IPv4/IPv6 DHCP Client, IPv4/IPv6 DHCP Relay, Option 82, Option 37/38, IPv4/IPv6 DHCP Snooping, IPv4/IPv6 DHCP Server
Green Ethernet IEEE 802.3az (Energy Efficient Ethernet) Конструкция без вентиляторов или с интеллектуальным контролем вентиляторов LED Shut-off
Spanning Tree Protocols 802.1D STP, 802.1W RSTP, 802.1S MSTP, Root Guard, BPDU Guard, BPDU Forwarding
VLAN 4K 802.1Q, Port-based VLAN, Normal QinQ, Selective QinQ, Private VLAN, Protocol VLAN, Voice VLAN, MAC VLAN, VLAN Translation, N:1 VLAN Translation
VLAN features 4K VLAN
Port aggregation 802.3ad (LACP) – 16 групп по 8 ports
Traffic mirror Port Mirror, CPU Mirror, RSPAN, SPAN 1:1 или N:1
Routing protocols IPv4 Статическая маршрутизация
Redundency protocols MRPP ITU-T, G.8032, Loopback Detection, Fast Link
Management protocols TFTP/FTP, CLI, Telnet, Console, Web/SSL (IPv4/IPv6), SSH (IPv4/IPv6), SNMPv1/v2c/v3, SNMP Trap Public & Private MIB, interface RMON 1,2,3,9 Ping, Trace Route Аутентификация RADIUS Syslog (IPv4/IPv6), SNTP/NTP (IPv4/IPv6), Dual IMG, Multiple Configuration Files sFlow OAM VCT, DDM ULDP (like Cisco UDLD) LLDP/LLDP MED, Dying GASP
Level L2+
Physical characteristics
Surge protection 4 kW
Cooling
Cooling active
Power supply
Voltage, V 100-240
Power supply type AC
Max. power consumption, W 40
Power adapters Integrated power supply
Performance specifications
Working temperature 0°C~+50°C
Humidity 95% non-condensing
Storage temperature -40°C~+70°C
Dimensions
Height, U 1
Height, mm 44
Depth, mm 220
Width, mm 440
Weight, kg 2,8
Logistics
Packing weight, kg 4,3
Packing height, mm 95
Packing length, mm 545
Packing width, mm 410
Other
Warranty 1 year

Technical documentation

pdf
Data sheet
Download, 937 KB
