Ethernet aggregation switches
QSW-4530
The QSW-4530 series managed Gigabit L3 switch is designed specifically for telecom operators and MAN networks.
The series switches support the following functionality:
The series switches support the following functionality:
- comprehensive QoS;
- advanced VLAN functions (VLAN VPN, Voice VLAN, QinQ, etc.);
- bandwidth management;
- intelligent security management;
- Ethernet OAM (Operations, Administration, Maintenance) standards;
- management functions and Triple Play services that meet the requirements of operator networks and MAN networks.
- Level
- Ports 1000BASE-X SFP
- Ports 10GbE SFP+
- Cooling
- Management protocols
- MAC address table
QSW-4530-30F-AC-AC
Managed L3 aggregation switch, 24 100/1000BASE-X ports, 6 10GbE SFP+ ports, 4K VLAN, 32K MAC addresses, OSPF support, console port, 2 replaceable power supplies, rear panel power connector
- L3
- 24 ports
- 6 ports
- active
- TFTP/FTP/SFTP, SNMPv1/v2c/v3, CLI (Console/Telnet/SSH) Ping, Trace Route, Syslog, SNTP/NTP, Dual IMG, Multiple Configuration Files, VCT, DDM, LLDP/LLDP
- 32K
QSW-4530-30F-AC-DC
Managed L3 aggregation switch, 24 100/1000BASE-X ports, 6 10GbE SFP+ ports, 4K VLAN, 32K MAC addresses, OSPF support, console port, 2 replaceable power supplies, rear panel power connector
- L3
- 24 ports
- 6 ports
- active
- TFTP/FTP/SFTP, SNMPv1/v2c/v3, CLI (Console/Telnet/SSH) Ping, Trace Route, Syslog, SNTP/NTP, Dual IMG, Multiple Configuration Files, VCT, DDM, LLDP/LLDP
- 32K
QSW-4530-30F-DC-DC
Managed L3 aggregation switch, 24 100/1000BASE-X ports, 6 10GbE SFP+ ports, 4K VLAN, 32K MAC addresses, OSPF support, console port, 2 replaceable power supplies, rear panel power connector
- L3
- 24 ports
- 6 ports
- active
- TFTP/FTP/SFTP, SNMPv1/v2c/v3, CLI (Console/Telnet/SSH) Ping, Trace Route, Syslog, SNTP/NTP, Dual IMG, Multiple Configuration Files, VCT, DDM, LLDP/LLDP
- 32K
QSW-4530-54F-AC-AC
Managed L3 aggregation switch, 48 100/1000BASE-X ports, 6 10GbE SFP+ ports, 4K VLAN, 32K MAC addresses, OSPF support, console port, 2 replaceable power supplies, rear power connector
- L3
- 48 ports
- 6 ports
- active
- TFTP/FTP/SFTP, SNMPv1/v2c/v3, CLI (Console/Telnet/SSH) Ping, Trace Route, Syslog, SNTP/NTP, Dual IMG, Multiple Configuration Files, VCT, DDM, LLDP/LLDP
- 32K

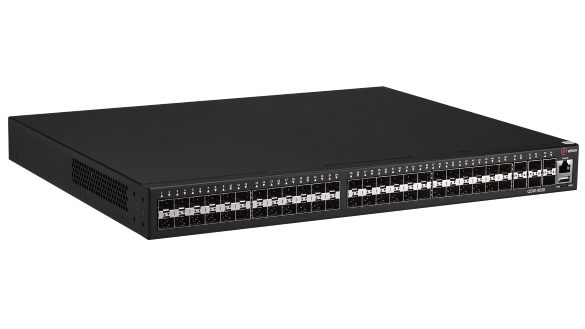

QSW-4530-54F-AC-DC
Managed L3 aggregation switch, 48 100/1000BASE-X ports, 6 10GbE SFP+ ports, 4K VLAN, 32K MAC addresses, OSPF support, console port, 2 replaceable power supplies, rear power connector
- L3
- 48 ports
- 6 ports
- active
- TFTP/FTP/SFTP, SNMPv1/v2c/v3, CLI (Console/Telnet/SSH) Ping, Trace Route, Syslog, SNTP/NTP, Dual IMG, Multiple Configuration Files, VCT, DDM, LLDP/LLDP
- 32K
QSW-4530-54F-DC-DC
Managed L3 aggregation switch, 48 100/1000BASE-X ports, 6 10GbE SFP+ ports, 4K VLAN, 32K MAC addresses, OSPF support, console port, 2 replaceable power supplies, rear power connector
- L3
- 48 ports
- 6 ports
- active
- TFTP/FTP/SFTP, SNMPv1/v2c/v3, CLI (Console/Telnet/SSH) Ping, Trace Route, Syslog, SNTP/NTP, Dual IMG, Multiple Configuration Files, VCT, DDM, LLDP/LLDP
- 32K
QSW-6300
The QSW-6300 series of switches is a series of multi-functional, high-performance, high-performance, security-enhanced, high-bandwidth switches that offer an excellent price-performance ratio and are ideal for large-scale network aggregation, the core of small or medium enterprises, and providing access level in centers data processing.
- suitable for small, medium and large corporate networks: up to 24000 routes and L3 Multicast;
- performance and scalability: switch bandwidth - up to 880 Gb / s and up to eight 10GE ports (models QSW-6300-32T, QSW-6300-32F);
- built-in functionality without additional licensing: SDN, VXLAN, MPLS;
- high reliability: 1+1 power redundancy, cooling module redundancy, hot-swappable components.
- Level
- Ports 10/100/1000BASE-T
- Ports combo 1000BASE-T\SFP
- Ports 100/1000BASE-X SFP
- Ports 10GbE SFP+
- Cooling
- Management protocols
- MAC address table

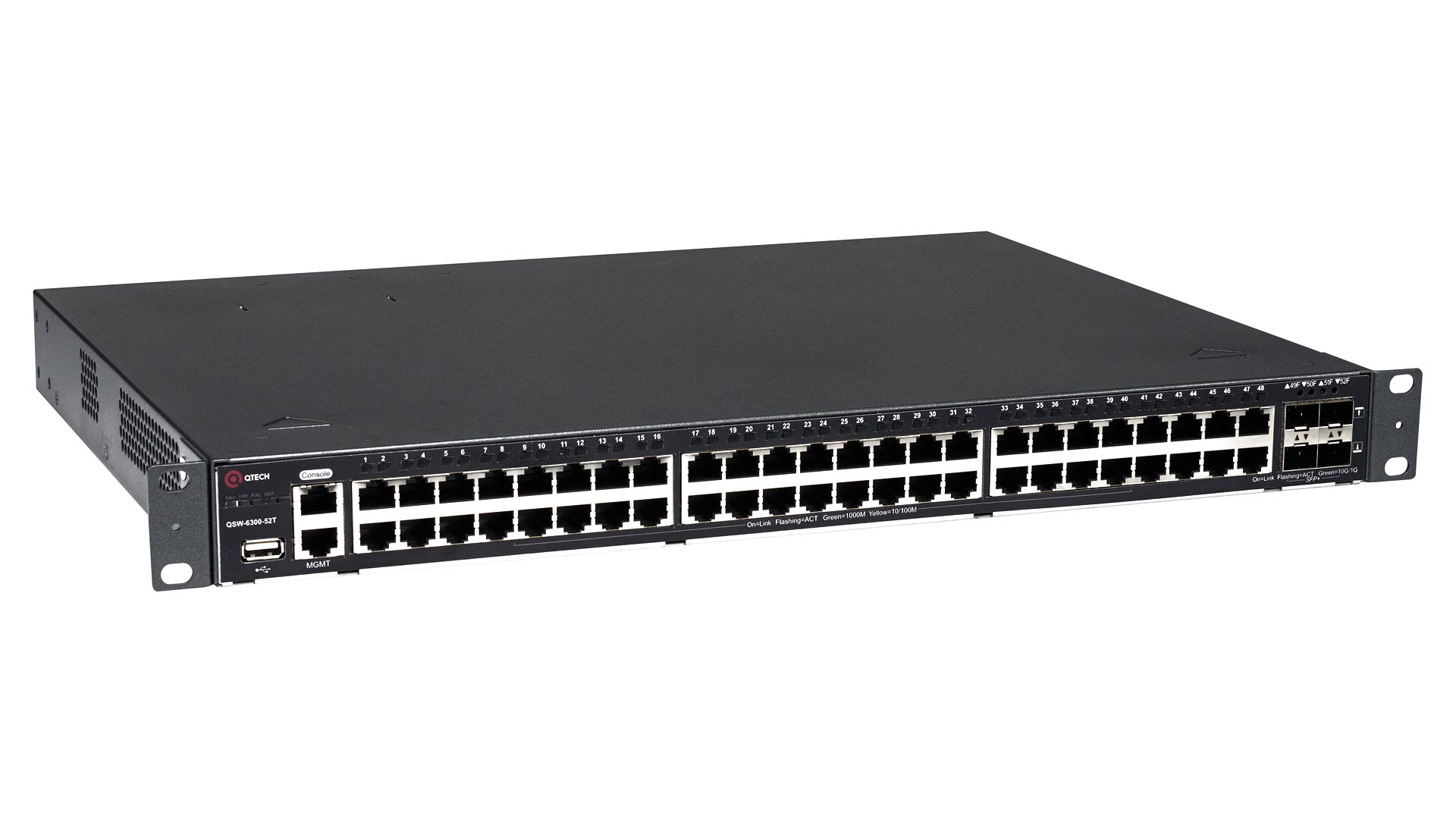

QSW-6300-52T
Managed stackable L3 switch, 48 10/100/1000BASE-T ports, 4 10GbE SFP+ ports, 4K VLAN, 64K MAC addresses, 1 USB 2.0 port, console port, MGMT management port, 2 replaceable PSUs (sold separately) rear panel, dimensions WxDxH (442x340x44 mm)
- L3
- 48 ports
- -
- -
- 4 ports
- active
- TFTP/FTP, sFlow, SNMPv1/v2c/v3, SNMP Trap, CLI (Console/Telnet/SSH), Web/SSL, Public & Private MIB
- 64K
QSW-6300-32F
Managed stackable L3 switch, 8 combo 1000BASE-T\SFP ports, 16 100/1000BASE-X SFP ports, 8 10GbE SFP+ ports, 4K VLAN, 64K MAC addresses, 1 USB 2.0 port, console port, MGMT management port, 2 replaceable PSU (sold separately) power connector on the rear panel, dimensions WxDxH (442x340x44 mm)
- L3
- -
- 8 ports
- 16 ports
- 8 ports
- active
- TFTP/FTP, sFlow, SNMPv1/v2c/v3, SNMP Trap, CLI (Console/Telnet/SSH), Web/SSL, Public & Private MIB
- 64K
QSW-6300-32T
L3 managed stackable switch, 24 ports 10/100/1000BASE-T, 8 ports 10GbE SFP+, 4K VLAN, 64K MAC addresses, 1 USB 2.0 port, console port, MGMT management port, 2 replaceable PSUs (sold separately) rear panel, dimensions WxDxH (442x340x44 mm)
- L3
- 24 ports
- -
- -
- 8 ports
- active
- TFTP/FTP, sFlow, SNMPv1/v2c/v3, SNMP Trap, CLI (Console/Telnet/SSH), Web/SSL, Public & Private MIB
- 64K
QSW-M-6300-PWR
Replacement power supply for QSW-6300, 150W, 100-240V AC
- -
- -
- -
- -
- -
- -
- -
- -
QSW-6700
The QSW-6700 series managed Gigabit L3 switch is designed specifically for use at the aggregation and core levels in data centers.
Description of software functionality:
Description of software functionality:
- Comprehensive QoS;
- Advanced VLAN functions (VLAN VPN, Voice VLAN, QinQ, etc.);
- Bandwidth management;
- Intelligent security management;
- 802.1D STP, 802.1W RSTP, 802.1S MSTP LACP, MRPP, ERPS, CFM redundancy protocols;
- IPv4/IPv6 tunneling GRE/GREv6;
- DHCP Snooping, IP Source Guard;
- NTP, SNTP, SNMP, Syslog;
- Tacacs+, RADIUS.
- Management protocols
- MAC address table
QSW-6700-32H
Managed switch, 32 ports 100GbE QSFP28, up to 122K MAC addresses, 1 USB 2.0 port, console port, MGMT management port, 2 replaceable power supplies, 100-240V AC, dimensions WxDxH (440x470x44 mm)
- SNMP v1/v2c/v3; CLI (Telnet/console) IPv4/6; RMON; SSHv2; FTP/TFTP for downloading and managing files with IPv4/6 support; SNTP, NTP IPv4/6; DNSv4/6; Syslog; SPAN/RSPAN/ERSPAN; LLDP/LLDP MED; Ping and Traceroute IPv4/6
- 122K

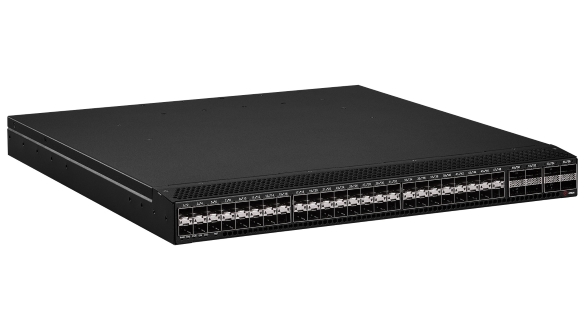

QSW-6700-56F
Managed switch, 8 ports 100GbE QSFP28, 48 ports 25GbE SFP28, up to 122K MAC addresses, 1 USB 2.0 port, console port, MGMT management port, 2 replaceable power supplies, 100-240V AC, dimensions WxDxH (440x470x44 mm)
- SNMP v1/v2c/v3; CLI (Telnet/console) IPv4/6; RMON; SSHv2; FTP/TFTP for downloading and managing files with IPv4/6 support; SNTP, NTP IPv4/6; DNSv4/6; Syslog; SPAN/RSPAN/ERSPAN; LLDP/LLDP MED; Ping and Traceroute IPv4/6
- 122K
QSW-6910
QSW-6910 series switches, as the aggregation layer switches of large campus networks, provide 10Gbps bandwidth for access equipment, and 40Gbps aggregation as a high-bandwidth communication link to connect the aggregation layer to the access layer, meeting the growing needs users.
Application options:
Application options:
- Aggregation layer of large networks, core layer of small and medium networks, full 10G layer 3 access for large enterprises or office buildings
- A wide range of management mechanisms ensures network security, high-security access control, and effective network access control
- Comprehensive management policies help manage bandwidth and guarantee key services such as voice calls, multicast audio and video streams, and video-on-demand.
- Level
- Height, U
- Ports 10GbE SFP+
- Ports 40GbE QSFP+
- Management protocols
- MAC address table

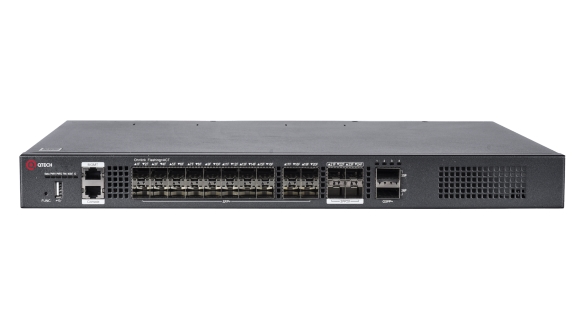

QSW-6910-26F
Managed stackable L3 switch, 4 x 25GbE SFP28 ports, 20 x 10GbE SFP+ ports, 2 x 40GbE QSFP+ ports, 4K VLANs, 32K MAC addresses, 1 x USB 2.0, console port, MGMT management port, 2 x removable PSUs (sold separately), 100- 240V AC, dimensions WxDxH (440x330x43.6 mm)
- L3
- 1
- 20 ports
- 2 ports
- SNMP, CLI (Telnet/Console), RMON (1,2,4,9), Syslog, NTP, SNMP over IPv6, IPv6 support MIB for SNMP, Telnet v6, FTP/TFTP v6, DNS v6, NTP for v6, Traceroute v6, sFlow
- 32K

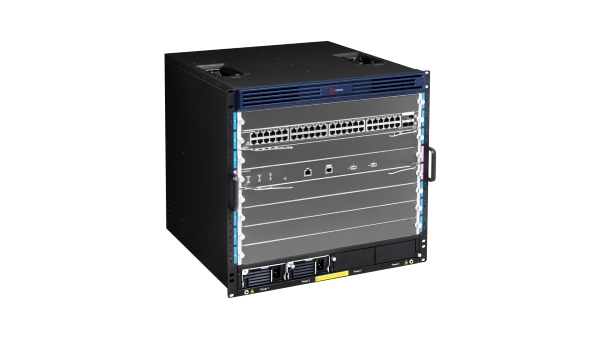

QSW-7600
The QSW-7600 series core level switches are specifically designed for next-generation integrated networks. By adopting the advanced version of RGOS12.X operating system and VSU/VSD virtualization technology, this series switches will support even future Ethernet network requirements for a long time.
Key Features
Key Features
- Virtual Switch Unit 3.0 (VSU)
- Virtual Switch Device (VSD)
- CLOS Architecture: Independent Switching
- Multiprocessor Modular Operating System
- Superior Energy Efficiency
- Height, U
