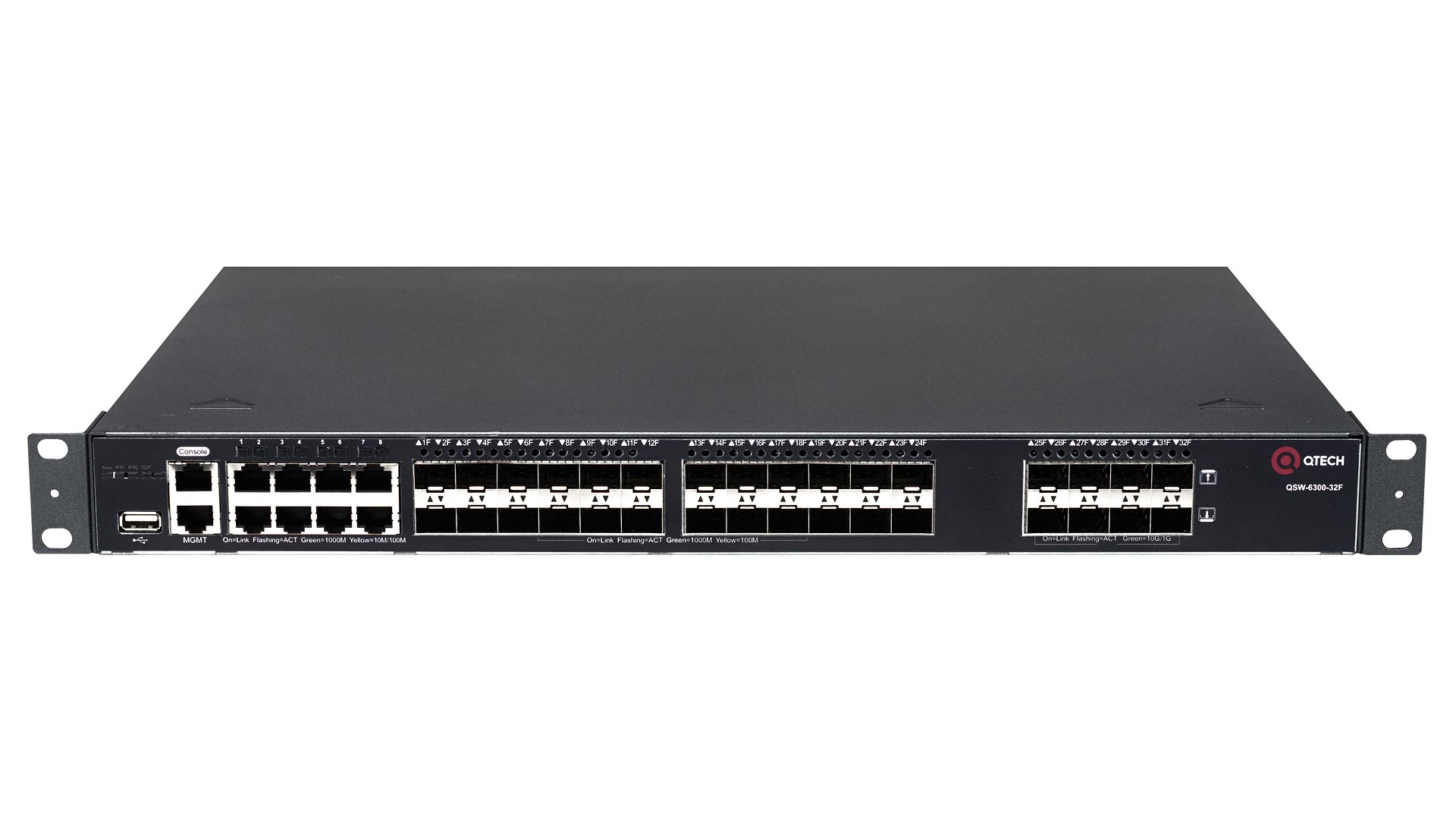

QSW-6300-32F
Managed stackable L3 switch, 8 combo 1000BASE-T\SFP ports, 16 100/1000BASE-X SFP ports, 8 10GbE SFP+ ports, 4K VLAN, 64K MAC addresses, 1 USB 2.0 port, console port, MGMT management port, 2 replaceable PSU (sold separately) power connector on the rear panel, dimensions WxDxH (442x340x44 mm)
Interfaces
| Ports 100/1000BASE-X SFP | 16 ports |
| Ports 10GbE SFP+ | 8 ports |
| Ports combo 1000BASE-T\SFP | 8 ports |
| Console ports | 1 port RS-232 (RJ45) |
| Managment ports | 1 port |
| USB interface | 1 port USB 2.0 |
Design

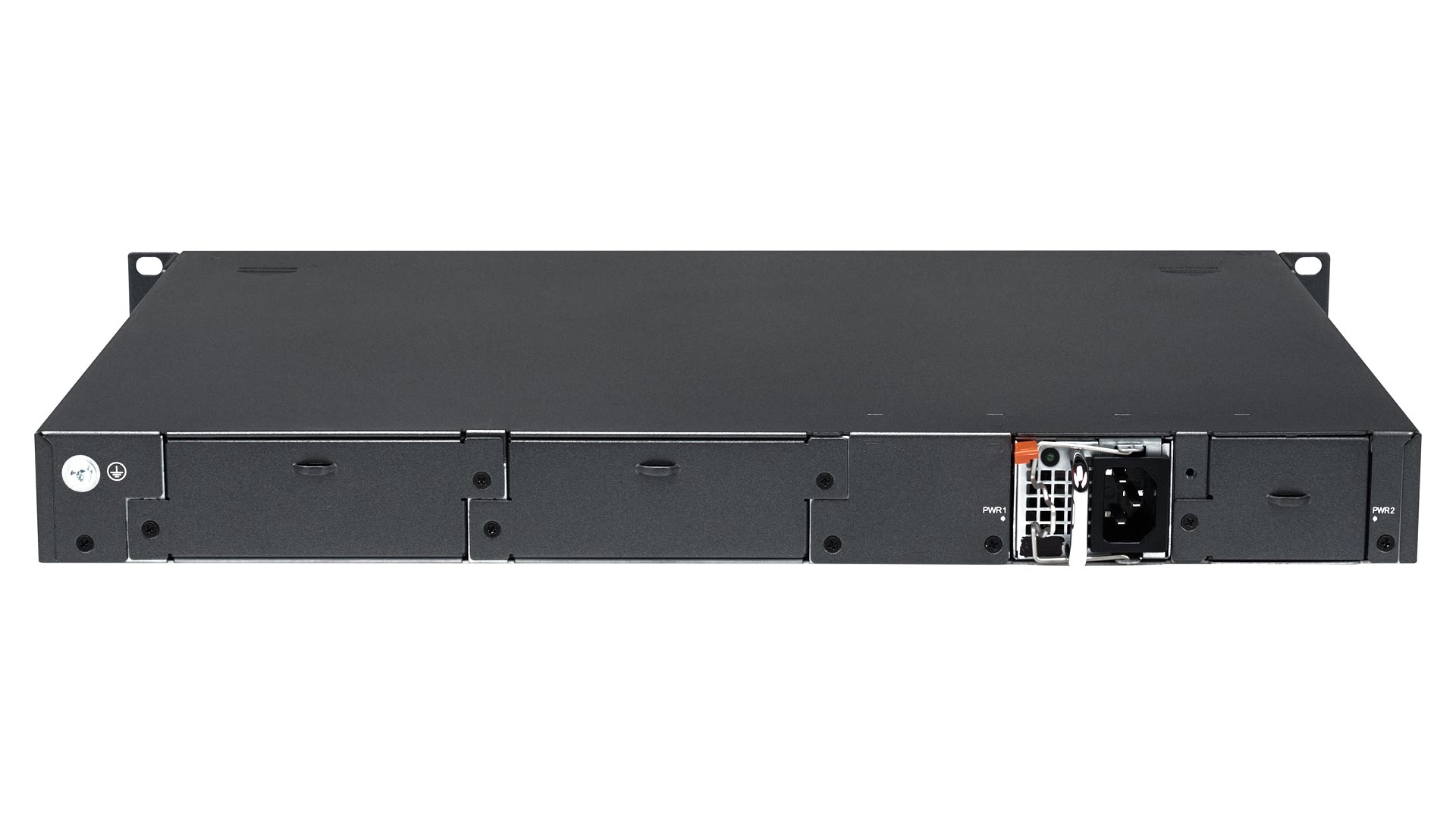

| Power connectors location | rear panel |
Performance
| Jumbo Frame | 9K |
| Switching capacity | 208 Gbps |
| MAC address table | 64K |
| Routing table | Up to 24K/14K IPv4/IPv6 (up to 64K IPv4 and 15K IPv6 in ALPM mode) |
Functionality
| DHCP | IPv4/IPv6 DHCP Client, IPv4/IPv6 DHCP Server, IPv4/IPv6 DHCP Snooping, DHCP Relay Option 82, DHCPv6 Relay Option 37/38 |
| Green Ethernet | IEEE 802.3az (Energy Efficient Ethernet) |
| VLAN | IEEE802.1Q, Voice VLAN, Port-based VLAN, Protocol-based VLAN, MAC-based VLAN, Private VLAN, QinQ, VLAN Mapping 1 to 1, N to 1, GVRP |
| VLAN features | 4K VLAN |
| ACL | IPv4 standard ACL, IPv4 extended ACL, IPv4 multicast ACL, IPv6 standard ACL, IPv6 extended ACL, IPv6 multicast ACL, MAC standard ACL, MAC extended ACL, User-defined ACL, MAC-IP extended ACL, Time based ACL |
| Port aggregation | 128 groups/8 ports |
| Traffic mirror | Port Mirror, CPU Mirror, RSPAN |
| Routing protocols IPv4 | Static, PBR, RIPv2, OSPFv2, ISISv4, BGP4 |
| Routing protocols IPv6 | Static, PBR, RIPng, OSPFv3, ISISv6, BGP4+ |
| Redundancy protocols | 802.1D STP, 802.1W RSTP, 802.1S MSTP, Stack, LACP, ERPS, Flex Link, RLDP, IP event dampening, VRRP, BFD, ECMP |
| Stacking feature | Yes |
| Switching type | Storage and Forwarding |
| Level | L3 |
| MPLS | LDP, ping mpls, traceroute mpls |
| Management protocols | TFTP/FTP, sFlow, SNMPv1/v2c/v3, SNMP Trap, CLI (Console/Telnet/SSH), Web/SSL, Public & Private MIB |
Physical characteristics
| EMC safety | CE, RoHS |
| MTBF | > 200,000 hours |
| Surge protection | 6 kW |
Cooling
| Cooling | active |
Power supply
| Max. power consumption, W | 77 |
| Power adapters | 2 replaceable power supply (independently) |
Performance specifications
| Working temperature | 0°C~+50°C |
| Humidity | 90% non-condensing |
| Storage temperature | -40°C~+70°C |
Dimensions
| Height, mm | 44 |
| Depth, mm | 340 |
| Width, mm | 442 |
| Weight, kg | 4.3 |
