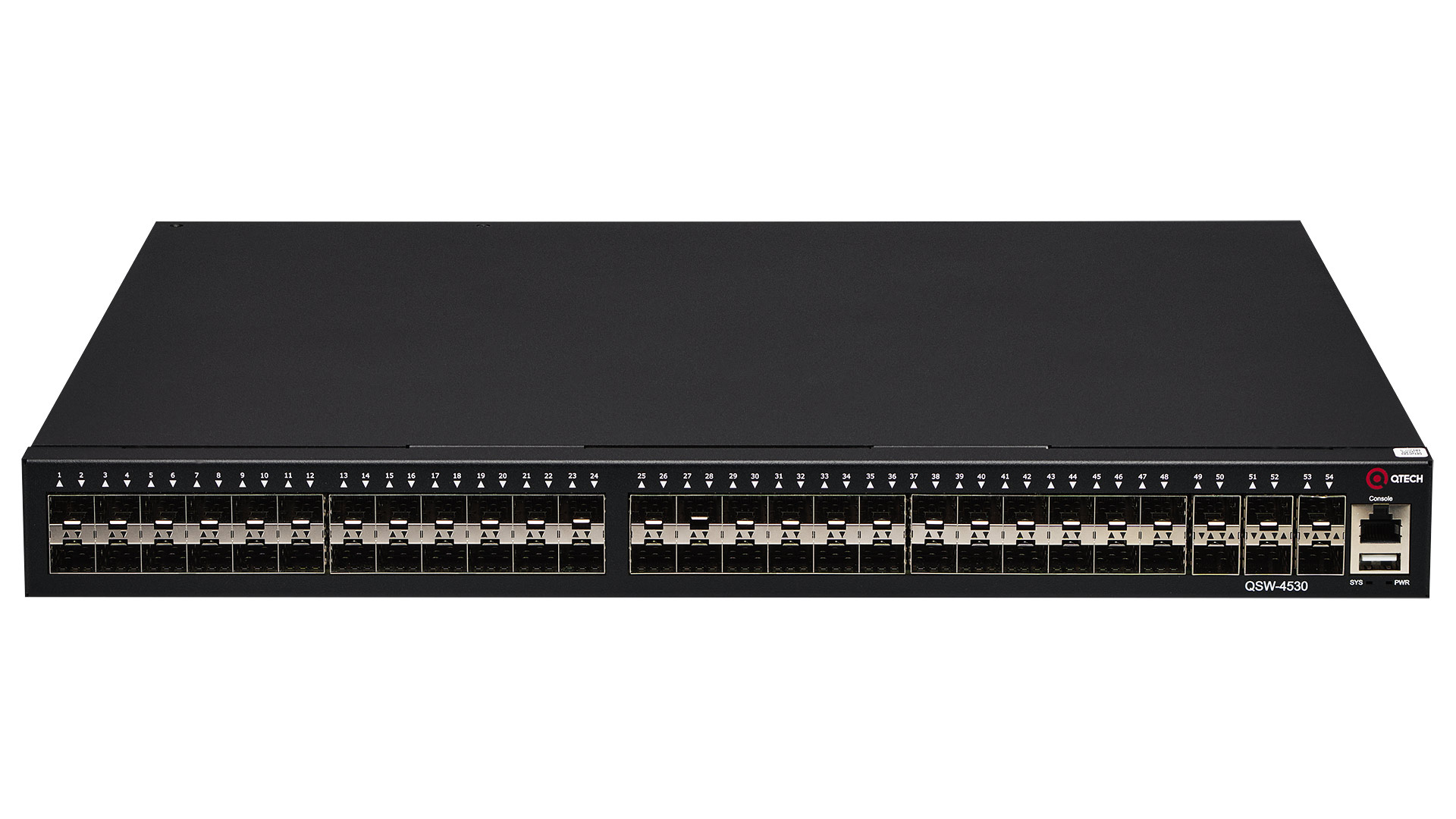

QSW-4530-54F-AC-AC
Managed L3 aggregation switch, 48 100/1000BASE-X ports, 6 10GbE SFP+ ports, 4K VLAN, 32K MAC addresses, OSPF support, console port, 2 replaceable power supplies, rear power connector
Description
The QSW-4530 series managed Gigabit L3 switch is designed specifically for telecom operators and MAN networks.
The series switches support the following functionality:
Enhanced security
The QSW-4530 series switches support an extensive set of tools to ensure network security:
High reliability
VLAN Features
Multicast Features
The series switches support the following functionality:
- comprehensive QoS;
- advanced VLAN functions (VLAN VPN, Voice VLAN, QinQ, etc.);
- bandwidth management;
- intelligent security management;
- Ethernet OAM (Operations, Administration, Maintenance) standards;
- management functions and Triple Play services that meet the requirements of operator networks and MAN networks.
Enhanced security
The QSW-4530 series switches support an extensive set of tools to ensure network security:
- BPDU Guard and Root Guard to prevent loops in the topology and unauthorized access to the network;
- support for ACLs used to restrict access to network resources by rejecting and filtering packets in accordance with specified policies;
- using DHCP Snooping to prevent DHCP attacks and the use of fake DHCP servers by setting trust and untrust ports;
- support for L3 security features such as Dynamic ARP inspection, Port security and other ARP and MAC security features to protect the network.
High reliability
- Support for STP, RSTP, MSTP protocols
VLAN Features
- Support for the 802.1Q standard and creation of port-based VLANs, MAC-based VLANs, Voice VLANs and Protocol VLANs.
- Extensive support for QinQ technology, including Basic QinQ and Selective QinQ
Multicast Features
- Support for the MVR (Multicast VLAN Register) protocol, which allows selective transmission of multicast traffic between different VLANs to improve network throughput and security.
- IGMP Snooping support prevents flooding in multicast traffic.
Interfaces
| Ports 1000BASE-X SFP | 48 ports |
| Ports 10GbE SFP+ | 6 ports |
| Console ports | 1 port RS-232 (RJ45) |
| USB interface | 1 port USB |
Performance
| Jumbo Frame | 12К |
| Switching capacity | 216 Gbit/s |
| MAC address table | 32K |
| Routing table | 12К |
Functionality
| DHCP | IPv4/IPv6 DHCP Client, IPv4/IPv6 DHCP Server, IPv4/IPv6 DHCP Snooping DHCP Relay Option 82, DHCPv6 Relay Option 37/38 |
| VLAN | IEEE802.1Q, Voice VLAN, Port-based VLAN, Protocol-based VLAN, MAC-based VLAN, Private VLAN, QinQ, VLAN Mapping 1 to 1, N to 1, GVRP |
| VLAN features | 4K VLAN |
| ACL | 4К |
| QoS | 8 queues for the port |
| Port aggregation | 128 groups / 8 ports |
| Traffic mirror | Port Mirror |
| Redundancy protocols | 802.1D STP, 802.1W RSTP, 802.1S MSTP, LACP |
| Switching type | Store and forward |
| Level | L3 |
| Management protocols | TFTP/FTP/SFTP, SNMPv1/v2c/v3, CLI (Console/Telnet/SSH) Ping, Trace Route, Syslog, SNTP/NTP, Dual IMG, Multiple Configuration Files, VCT, DDM, LLDP/LLDP |
Physical characteristics
| MTBF | > 80 000 hours |
Cooling
| Cooling | active |
Power supply

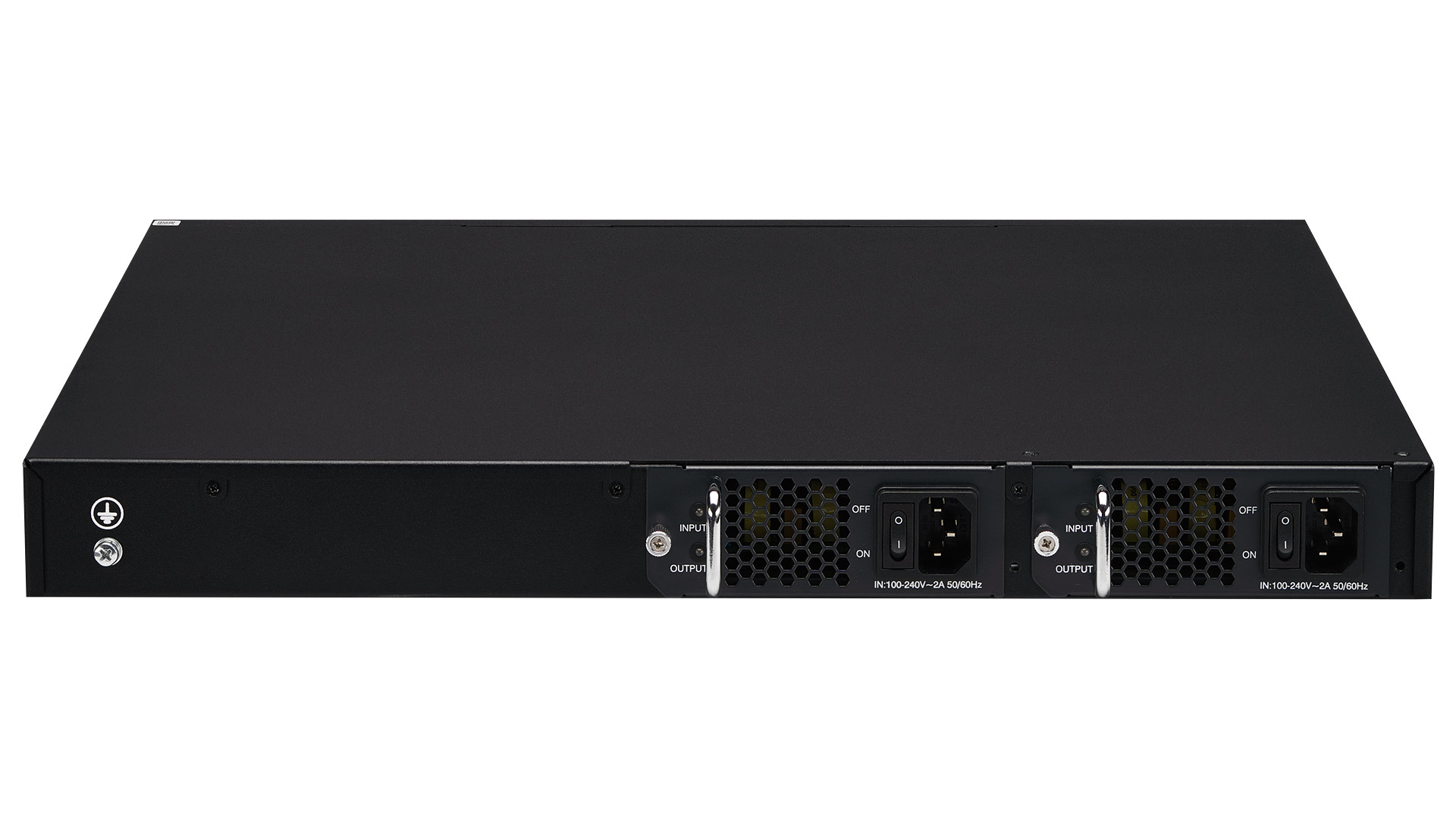

| Power adapters | 2 removable power supply |
| Power | АС-АС |
Performance specifications
| Working temperature | 0°C~+50°C |
| Humidity | 95% non-condensing |
| Storage temperature | -40°C~+70°C |
