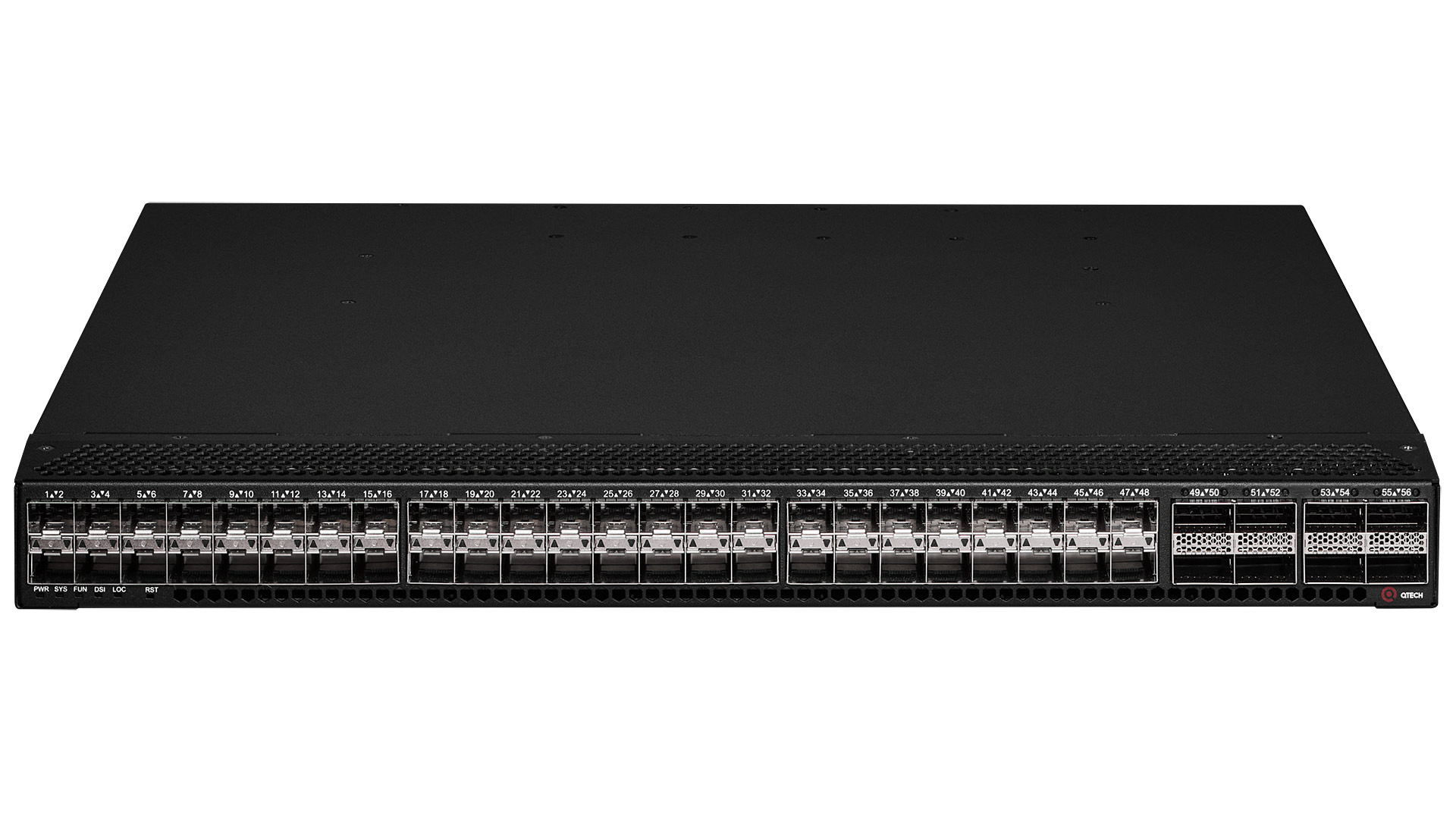

QSW-6700-56F
Managed switch, 8 ports 100GbE QSFP28, 48 ports 25GbE SFP28, up to 122K MAC addresses, 1 USB 2.0 port, console port, MGMT management port, 2 replaceable power supplies, 100-240V AC, dimensions WxDxH (440x470x44 mm)
Description
QTECH QSW-6700 series includes high-speed switches with high density of 25Gbps or 100Gbps Ethernet ports, designed for operation in high-load networks.
QSW-6700-56F has 48 Ethernet 25Gbps SFP28 ports, 8 Ethernet 100Gbps QSFP28 ports, QSW-6700-32H has 32 Ethernet 100Gbps QSFP28 ports. Each QSFP28 port can operate with 100 or 40Gbps Ethernet bandwidth.
Key features:
Dynamic Routing Protocol Support
The switches in this series support a wide range of IPv4 routing protocols, including static routing, RIP, OSPF, and BGP4, which can be selected based on network requirements. The switches in this series also support an extended list of IPv6 routing protocols, such as static routing, RIPng, OSPFv3, and BGP4+, which can be selected to upgrade an existing network to IPv6 or to construct a new IPv6 network.
Advanced Management
The QSW-6700 series switches support configuration via the console port, as well as using Telnet and SSH remote access protocols. The switches also support SNMP protocols.
QSW-6700-56F has 48 Ethernet 25Gbps SFP28 ports, 8 Ethernet 100Gbps QSFP28 ports, QSW-6700-32H has 32 Ethernet 100Gbps QSFP28 ports. Each QSFP28 port can operate with 100 or 40Gbps Ethernet bandwidth.
Key features:
- 25 and 100Gbps switches with high port density;
- Continuous performance with powerful caching;
- Support for dynamic routing;
- High reliability - support for hot pluggable cables, power supplies and fans with redundancy.
Dynamic Routing Protocol Support
The switches in this series support a wide range of IPv4 routing protocols, including static routing, RIP, OSPF, and BGP4, which can be selected based on network requirements. The switches in this series also support an extended list of IPv6 routing protocols, such as static routing, RIPng, OSPFv3, and BGP4+, which can be selected to upgrade an existing network to IPv6 or to construct a new IPv6 network.
Advanced Management
The QSW-6700 series switches support configuration via the console port, as well as using Telnet and SSH remote access protocols. The switches also support SNMP protocols.
Interfaces
| Ports 25GbE SFP28 | 48 ports |
| Console ports | 1 port RS-232 (RJ45) |
| USB interface | 1 port USB 2.0 |
Performance
| Switching capacity | 4000 Gbps |
| Packet Forwarding Rate | 2976.0 Mpa/s |
| MAC address table | 122K |
Functionality
| DHCP | DHCP server IPv4/IPV6, DHCP client IPv4/IPV6, DHCP snooping IPv4/IPV6, DHCP relay IPv4/IPV6 |
| Spanning Tree Protocols | IEEE802.1d (STP), IEEE802.1w (RSTP), IEEE802.1s (MSTP), TC protection, Loop guard, Root guard, Spanning Tree Root Guard (STRG) |
| VLAN | 4K VLANs, Port-based VLAN, MAC-based VLAN, Protocol-based VLAN, Private VLAN, IP, GVRP |
| ACL | Standard/Extended/Expert ACL, Extended MAC ACL, ACL 80, IPv6 ACL |
| QoS | Traffic classification 802.1p, DSCP, TOS and IP Precedence; Priority marking/remarking |
| Port aggregation | up to 127 groups, up to 8 ports in each group |
| Traffic mirror | Many-to-one mirroring, One-to-many mirroring, Flow-based mirroring, Over devices mirroring, VLAN-based mirroring, VLAN-filtering mirroring, AP-port mirroring, RSPAN, ERSPAN |
| Redundancy protocols | GR for RIP/OSPF/BGP; BFD; VRRP IPv4/6; 1+1 power redundancy; 4+1 fan redundancy; hot-swappable power modules |
| Management protocols | SNMP v1/v2c/v3; CLI (Telnet/console) IPv4/6; RMON; SSHv2; FTP/TFTP for downloading and managing files with IPv4/6 support; SNTP, NTP IPv4/6; DNSv4/6; Syslog; SPAN/RSPAN/ERSPAN; LLDP/LLDP MED; Ping and Traceroute IPv4/6 |
Power supply
| Voltage, V | 100-240 |
| Max. power consumption, W | 300 |
| Power adapters | 2 removable power supply |
| Power | АС |
Performance specifications
| Working temperature | 0°C~+45°C |
| Humidity | 90% non-condensing |
| Storage temperature | -40°C~+70°C |
Dimensions
| Height, mm | 44 |
| Depth, mm | 470 |
| Width, mm | 440 |
