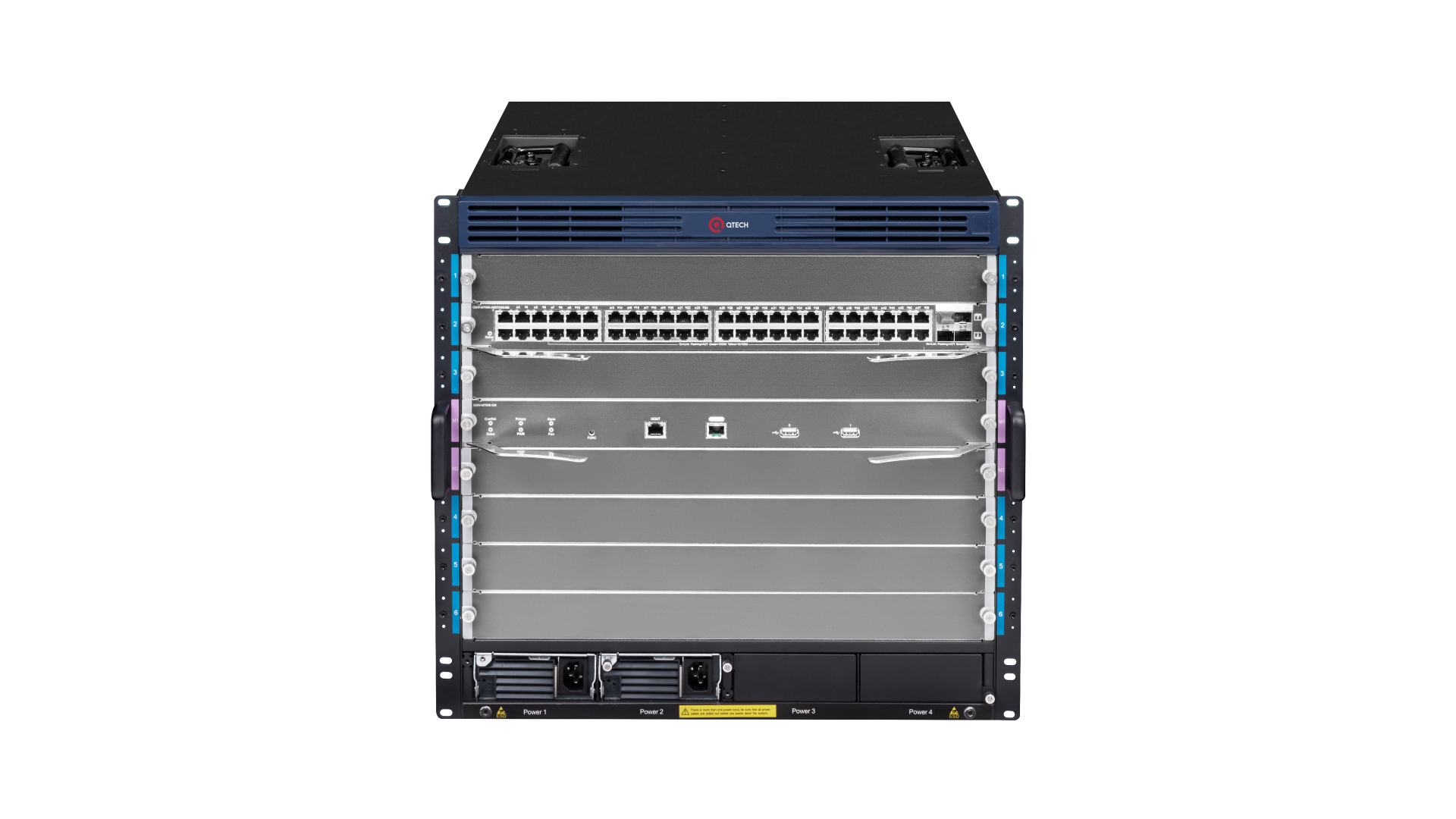

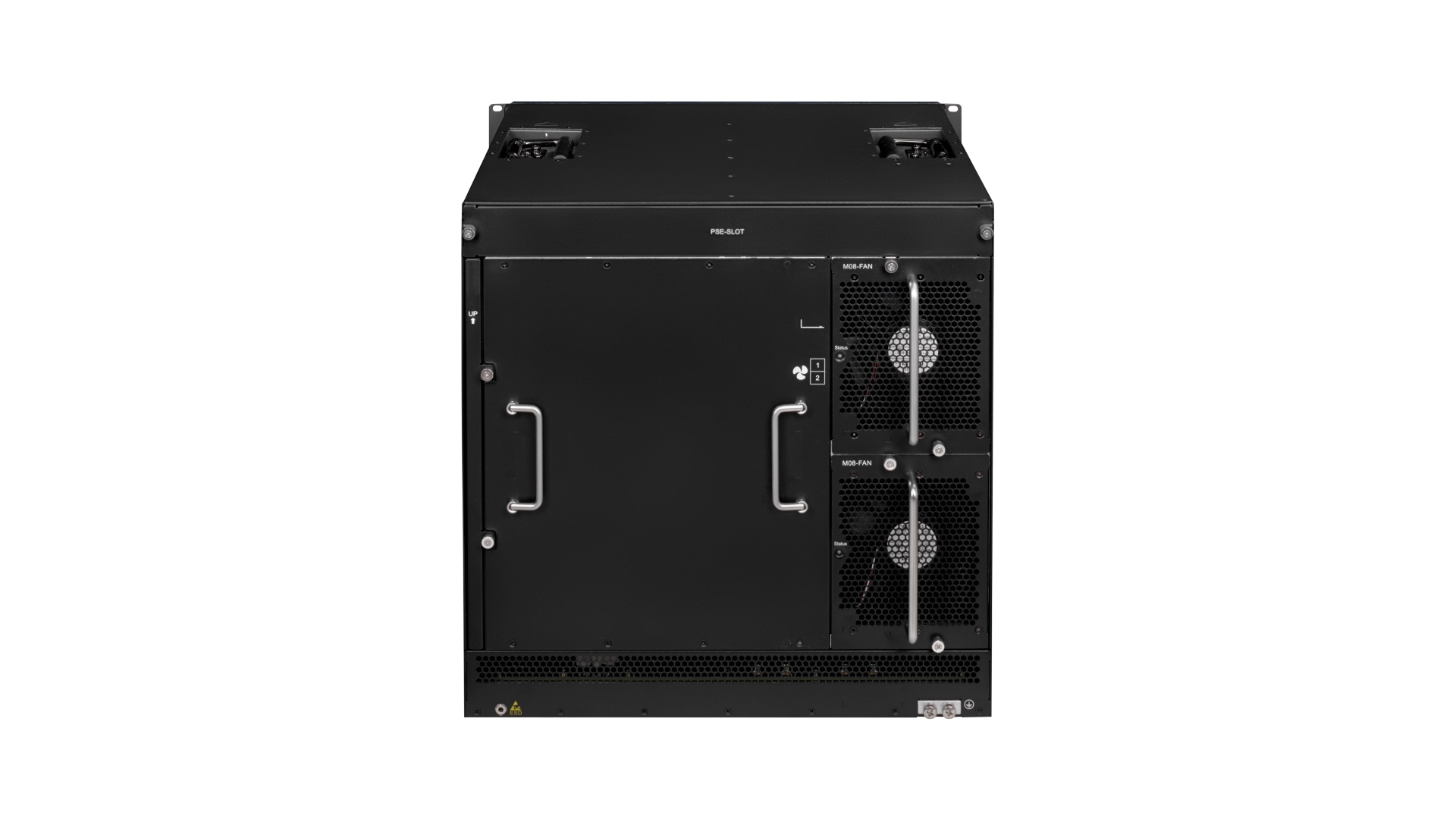

QSW-7608
Switch, chassis, 6 slots for service modules and 2 slots for management modules, dimensions WxDxH (442x535x441.7 mm) Qtech QSW-7608
Performance
| Switching capacity | 57.6 Tbps / 234.6 Tbps |
Functionality
| ACL | Standard, extended, expert ACLs; ACL 80; IPv6 ACL |
| Traffic mirror | Many-to-one mirroring, one-to-many mirroring, stream-based mirroring, SPAN, RSPAN, VLAN mirroring |
| Reliability and redundancy | Control system: redundancy 1+1; Power supply: N+M redundancy; Fan: redundant 1+1; Hot swappable components; Hot fix and patch updates over the Internet; ISSU; GR for OSPF/IS-IS/BGP; BFD for VRRP/OSPF/BGP4/ISIS/ISISv6/static routing |
| Routing protocols IPv4 | Static routing, RIP, OSPF, IS-IS, BGP4; VRRP; Routing over multiple equal weight paths (ECMP); Policy based routing; Tunneling GRE, MPLS, MPLS L3VPN |
| Routing protocols IPv6 | Static Routing, OSPFv3, BGP4+, IS-ISv6, MLDv1/v2; VRRPv3; Routing over multiple equal weight paths (ECMP); Policy based routing; Custom Tunneling, Automatic Tunneling, ISATAP Tunneling, GRE Tunneling |
| L2 features | jumbo frame; 802.1Q; STP, RSTP, MSTP; super VLAN; GVRP; QinQ, Flexible QinQ; LLDP; ERPS (G.8032) |
Physical characteristics
| MTBF | > 200000 h |
| Surge protection | 6 kW |
Performance specifications
| Working temperature | 0°C~+50°C |
| Humidity | 90% non-condensing |
| Storage temperature | -40°C~+70°C |
Dimensions
| Height, U | 10 |
| Height, mm | 441,7 |
| Depth, mm | 535 |
| Width, mm | 442 |
