New models of QTECH access points
15 August 2022
QTECH presents new models of high-performance access points: QWO-420E, QWO-820E, QWO-880, QWO-880E.
The new equipment can be used outdoors (t= -40°C ~ +70°C) thanks to the high quality enclosures made of aluminum alloy and high quality plastic (QWO-880) which provide IP67 protection. At the request of the customer for the models QWO-420E, QWO-820E and QWO-880E, options are provided in cases with IP65 protection.
The new access points comply with the IEEE standards for 802.11ac wave2 (QWO-420E) and 802.11ax (QWO-820E, QWO-880, QWO-880E) wireless LANs. Moreover, the models have the following differences:
- QWO-420E is equipped with a Qualcomm chipset supporting 2x2 MU-MIMO and a maximum speed of 1200 Mbps (300 Mbps at 2.4 GHz and 900 Mbps at 5 GHz);
- QWO-820E is equipped with Mediatek chipset supporting 2×2 DL/UL-MIMO and maximum speed of 1800 Mbps (600 Mbps at 2.4 GHz and 1200 Mbps at 5 GHz);
- QWO-880 and QWO-880E are powered by Qualcomm chipset with 4×4 DL/UL-MIMO support and maximum speed of 3657 Mbps (1182 Mbps at 2.4 GHz and 2475 Mbps at 5 GHz).

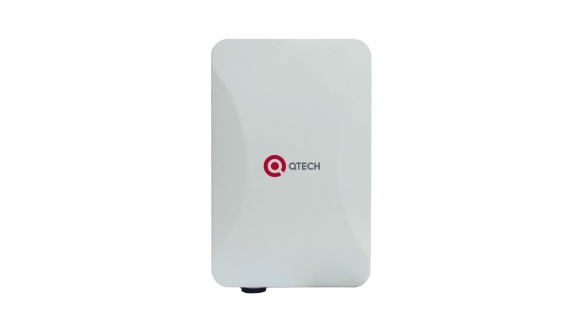

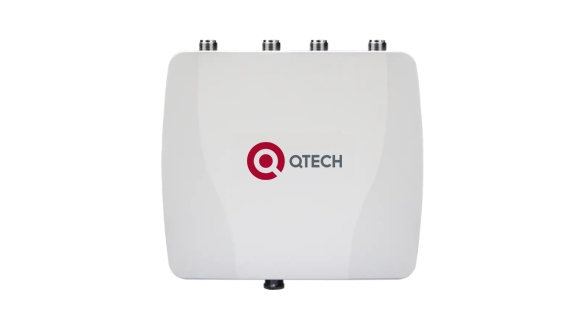

To ensure the reception and transmission of Wi-Fi signals, the QWO-420E, QWO-820E, QWO-880E models are provided with 4 N-type connectors (female) for connecting external antennas. The QWO-880 access point is equipped with built-in omnidirectional antennas with a gain of 6 dBi.
All devices support an extended set of ESSID identification services, and in the QWO-420E model - up to 8 for 2.4 GHz, up to 16 for 5 GHz, in all others - up to 8 in each transceiver (16 in total).
The presented access points have the following parameters:
- simultaneous operation in two bands 2.4 and 5 GHz;
- Possibility of power supply via Ethernet 802.3at (PoE+);
- centralized control via QTECH controller or autonomous operation (QWO-420E, QWO-880, QWO-880E).
For more information about the new QTECH access points, please contact sales@qtech.ru
Outdoor access point, 2.400-2.480 and 5.150-5.850 GHz, 1182/2475 Mbps, 802.11 a/b/g/n/ac/ax, PoE 802.3at, 4×4 DL/UL-MIMO, OFDM = BPSK, QPSK, 16-QAM, 64-QAM, 128-QAM, 256-QAM, 1024-QAM; DSSS = DBPSK, DQPSK, CCK, IP67, 1GB RAM + 128MB, PoE (injector sold separately)
Outdoor access point, 2.400-2.480 and 5.150-5.850 GHz, 1182/2475 Mbps, 802.11 a/b/g/n/ac/ax, PoE 802.3at, 4×4 DL/UL-MIMO, OFDM = BPSK, QPSK, 16-QAM, 64-QAM, 128-QAM, 256-QAM, 1024-QAM; DSSS = DBPSK, DQPSK, CCK, IP67, 1GB RAM + 128MB, PoE (injector sold separately)
External access point, 2.400-2.480 and 5.150-5.850 GHz, 600/1200 Mbps, 802.11 b/g/n/ac/ax, 1 port 10/100BASE-T, PoE 802.3at, 2x2 DL/UL-MIMO, OFDM = BPSK, QPSK, 16-QAM, 64-QAM, 128-QAM, 256-QAM, 1024-QAM; DSSS = DBPSK, DQPSK, CCK, IP67, 256MB RAM + 16MB, PoE (injector sold separately)
Outdoor access point, 2.400-2.480 and 5.150-5.850 GHz, 300/900 Mbps, 802.11 a/b/g/n/ac, PoE 802.3at, 2x2 MU-MIMO, CCK, BPSK, QPSK, 16QAM, 64QAM, 256QAM, IP67, 128MB RAM + 16MB, PoE (injector sold separately) DC
