New QTECH: External Access Point QWO-420-AC-CPE
2 November 2021
QTECH introduces a new external access point QWO-420-AC-CPE of the 802.11ac wave 2 standard, which can be used as a conventional access point with a sector antenna, and to create a wireless bridge in point-to-point or point-to-multipoint modes.
High performance is achieved thanks to the Qualcomm chipset, which supports 2x2 MU-MIMO technology.

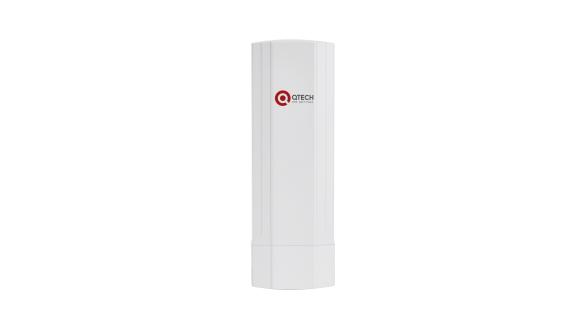

Unlike the previous model QWO-420-VC, the new point is equipped with four built-in directional antennas with a gain of 12dBi at 2.4 GHz and 14dBi at 5GHz. The radiation sector of each antenna is 60 degrees. These antenna devices allow you to increase the maximum range to 2 km or more. The housing of the QWO-420-AC-CPE is made of durable non-flammable ABS plastic, which can withstand temperatures from -40°C to +55 °C.
Basic parameters:
- simultaneous operation in the 2.4 and 5 GHz frequency bands;
- maximum speed of 1200 Mbit/s (300 Mbit/s at 2.4GHz, 900 Mbit/s at 5 GHz);
- remote power supply via twisted pair cable (POE Ethernet 802.3at);
- network protocols - IPv4, VLAN, NTP;
- channel width – 20/40/80 MHz;
- ports - 10/100/1000BASE-T (LAN, WAN);
- operating modes - AP, REPEATER•
- built-in enterprise-level protection in accordance with generally accepted standards;
- Up to 4 extended sets of ESSID identification services for each transceiver according to 802.1Q for virtual LAN;
- installation on pipe resistance.
For more information about the new access point, please contact the QTECH managers at sales@qtech.ru.
Outdoor access point, 2.400-2.480 and 5.150-5.850 GHz, 300/900 Mbps, 802.11 b / g / n / ac, PoE 802.3at, 2x2 MU-MIMO, OFDM = BPSK, QPSK, 16-QAM, 64- QAM, 128-QAM, 256-QAM; DSSS = DBPSK, DQPSK, CCK, 128 MB RAM + 16 MB, external PSU (optional), PoE power supply, 12V / 48V DC
Outdoor access point, 2.400-2.480 and 5.150-5.850 GHz, 300/900 Mbps, 802.11 a / b / g / n / ac, PoE 802.3af, 2x2 MU-MIMO, OFDM = BPSK, QPSK, 16-QAM, 64-QAM, 128-QAM, 256-QAM; DSSS = DBPSK, DQPSK, CCK, IP65, 128 MB RAM + 16 MB, external PSU (optional), PoE, 12V / 48V DC
