New QTECH: IP video intercom QDB-11P

QTECH presents a new SIP IP video intercom QDB-11P. This is a compact one-button model with a built-in card reader. Scope of use: office, apartment or private house. Remote power supply using PoE technology (IEEE802.3af, Power-over-Ethernet). Two-way audio over IP network with echo cancellation.

Built-in video camera 1/2.7'', CMOS has a wide viewing angle: 116° horizontally, 60° vertically. Good image quality over the video channel is guaranteed with a minimum illumination of 0.1 Lux. The complete set with a light sensor allows you to automatically turn on the night mode with LED backlight in the dark.

QDB-11P Features:

• Card Reader 13.56 MHz and 125 kHz.
• 2 output relays for automatic door opener.
• Compatible with QTECH NVRs.
• Integration into digital PBXs with SIP support.
• Support for the ONVIF standard for integration into a network video surveillance system.
• The presence of a built-in infrared sensor to automatically turn on the camera.
• Supported resolutions: CIF, QCIF, VGA, 4CIF, 720p.
• Maximum video resolution: 1280×720, 30 frames per second.
• Autoconfiguration.
• Configuration via WEB-interface.
• Removing network dumps from the Web interface.
• Create configuration backups for recovery.
• System logs (including door opening logs).

For detailed information about the new IP video intercom model, please contact sales@qtech.ru.

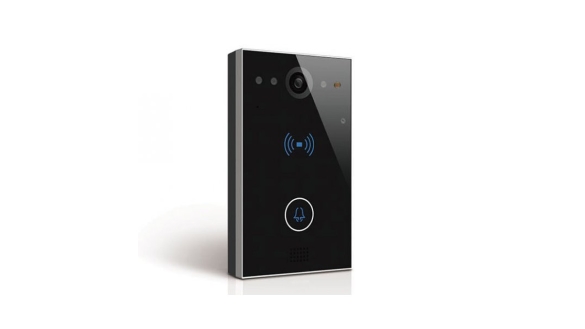

QDB-11P

SIP compact calling one-button video intercom with built-in card reader. Case material: plastic. Camera: 2M pixels, automatic lighting, wide angle camera: 116°. RF Card Reader 13.56 MHz and 125 kHz. 2 output relays for opening the door. Installation: Surface Mount. PoE (IEEE802.3af); Two-way audio over IP networks with echo cancellation. Complies with the SIP standard for easy integration into every SIP PBX; Dimensions: 145×85×27 mm
