QTECH novelties: Ethernet switches next generation

QTECH continues to develop its line of IP switching equipment and introduces the new QSW-6910 series - 10G Ethernet switches with unique functionality. These switching devices feature advanced hardware architecture and the latest 12th generation QTOS modular operating system. Advanced technology solutions provide increased processing performance and higher security.

Switches in this series can operate over 32 10Gbps fiber optic links and support high-performance 10/25/40 Gbps uplink. This operating mode meets the modern requirements of users, operators and providers.

An improved end-to-end network quality of service, as well as the ability to flexibly and feature-rich security settings, are important to corporate customers. These options are available both for large scale network aggregation and for configuring small to medium sized network nodes. The resulting metrics meet all standards for high-speed, highly secure and intelligent corporate networks.

Features of the QSW-6910 lineup:

• up to 32 Base-X 10 Gb / s access ports, 4 - 25 Gb / s and 2 - 40 Gb / s (uplink);
• built-in advanced support for Layer 3 routing;
• 1 + 1 hot-swappable redundancy of power supply modules, power supplies and fans;
• high reliability (mean time between failures - 30 years).

• ports - 4 10 / 25GbE SFP28 ports, 20 1 / 10GbE SFP + ports, 2 40GbE QSFP + ports, 1 console port, 1 MGMT port and 1 USB 2.0 port;
• power supply - 100-240V AC, two replaceable blocks;
• switching matrix - 760 Gbps;
• throughput - 570 Mpak/s;
• size of the MAC addressing table - 32K;
• memory - 1 GB RAM;
• redundancy protocols - VSU, GR for RIP / OSPF / BGP, BFD, G.8032 (ERPS), technology of fast switching REUP, (Rapid Link Detection Protocol);
• management protocols - SNMP, CLI, RMON (1,2,4,9), Syslog, NTP, SNMP, IPv6 MIB, Telnet, FTP / TFTP, DNS, NTP, Traceroute, sFlow;
• spanning Tree Protocols – IEEE802.1 d/w/s (STP/RSTP/MSTP);
• VLAN - 802.1Q, Port-based, Private, GVRP, Super;
• port mirroring - Flow-based mirroring, Many-to-one mirroring, One-to-many, RSPAN, Link aggregation mirroring;
• IP-маршрутизация – Static routing, RIP, RIPng, OSPFv2, OSPFv3, IS-ISv4, IS-ISv6, BGP4, BGP4+ ECMP;
• operating temperature - from 0 ° C to + 50 ° C;
• maximum humidity 90% non-condensing.

Additionally, you can order a replacement power supply unit QSW-M-6910-PWR-AC with an output power of 150 watts.

For detailed information about the new QSW-6910 switches, please contact sales@qtech.ru

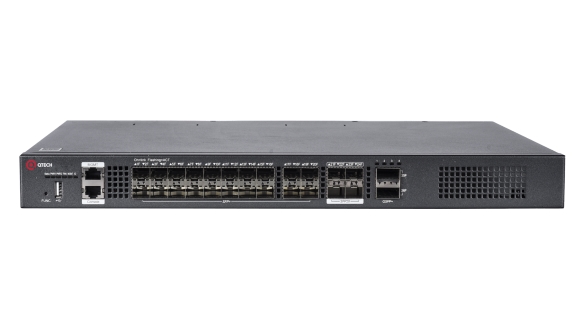

QSW-6910-26F

Managed stackable L3 switch, 4 ports 25GbE SFP28, 20 ports 10GbE SFP +, 2 ports 40GbE QSFP +, 4K VLAN, 32K MAC addresses, 1 port USB 2.0, console port, MGMT management port, 2 replaceable PSUs (sold separately), 100- 240V AC, dimensions WxDxH (440x330x43.6 mm)

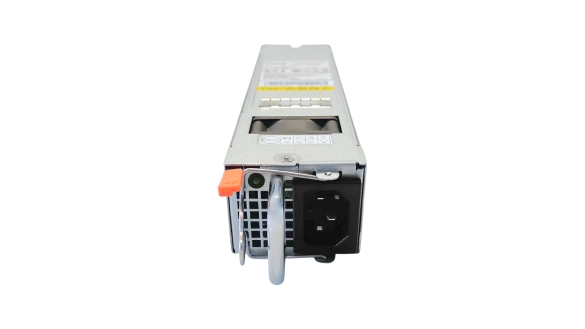

QSW-M-6910-PWR-AC

Replacement power supply for QSW-6910-26F, 150W AC
