Review of specialized IP video cameras
6 March 2024
To organize video surveillance of the territory, remote monitoring of technological processes, remote process control, and visual verification of emergency situations, specialized IP video cameras are used. To solve such problems, QTECH has developed two models of specialized IP video cameras: QVC-IPC-R1203FM-PRO and QVC-IPC-Z201DC-PRO (37x).
QVC-IPC-R1203FM-PRO
IP video camera with a resolution of 12 MP. Fisheye camera type. Fixed lens with focal resolution at a distance of 1.6 mm. IR illumination with a range of 15 meters. Camera viewing angle is 180 degrees. Also, the equipment is equipped with a built-in microphone, a slot for a MicroSD card with a memory capacity of up to 256 GB. The IP video camera model transmits data through 1 10/100BASE-T port. The camera's power supply is DC from a PoE source. The presented equipment can be operated in a temperature range from -40C to +60C. Camera with increased degree of protection IP66.

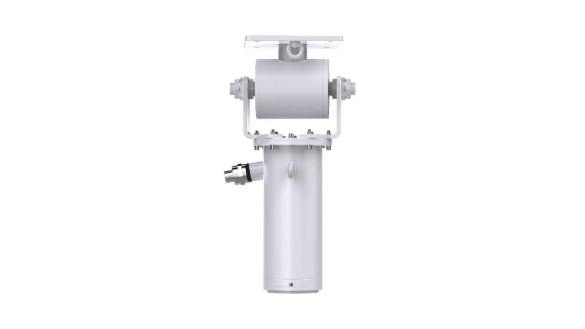

QVC-IPC-Z201DC-PRO (37x)
Crane IP video camera with 2MP resolution. Equipped with a built-in 1/1.8” CMOS Sony Starvis image sensor. Lens type: zoom. Focal length from 6.5 to 240.5 mm. The memory card slot supports a MicroSD card with a memory capacity of up to 256 GB. The equipment is equipped with a built-in 10/100BASE-T port. The camera is powered by PoE with a voltage of 24V. The cameras are equipped with increased IP68 protection. The camera can operate in temperature conditions ranging from -45C to +60C.
Advantages of specialized QTECH IP video cameras
-
Construction of scalable distributed video surveillance systems.
-
Advanced camera setup functionality.
-
No double conversion.
-
Not tied to analog video standards.
-
Using progressive scan.
-
Transmit audio and video simultaneously.
IP video camera FishEye 12 MP, fixed lens 1.6 mm, IR illumination range up to 15 m, IP66, MicroSD cards up to 256 GB, -40°C~+60°C, PoE power supply, 12V DC
Crane IP video camera 2 MP, zoom lens 6.5-240.5 mm, 37x optical zoom, IP68, MicroSD card up to 256 GB, -45°C~+60°C, with oil shock absorber made of 316L stainless steel, PoE power supply, 24V
