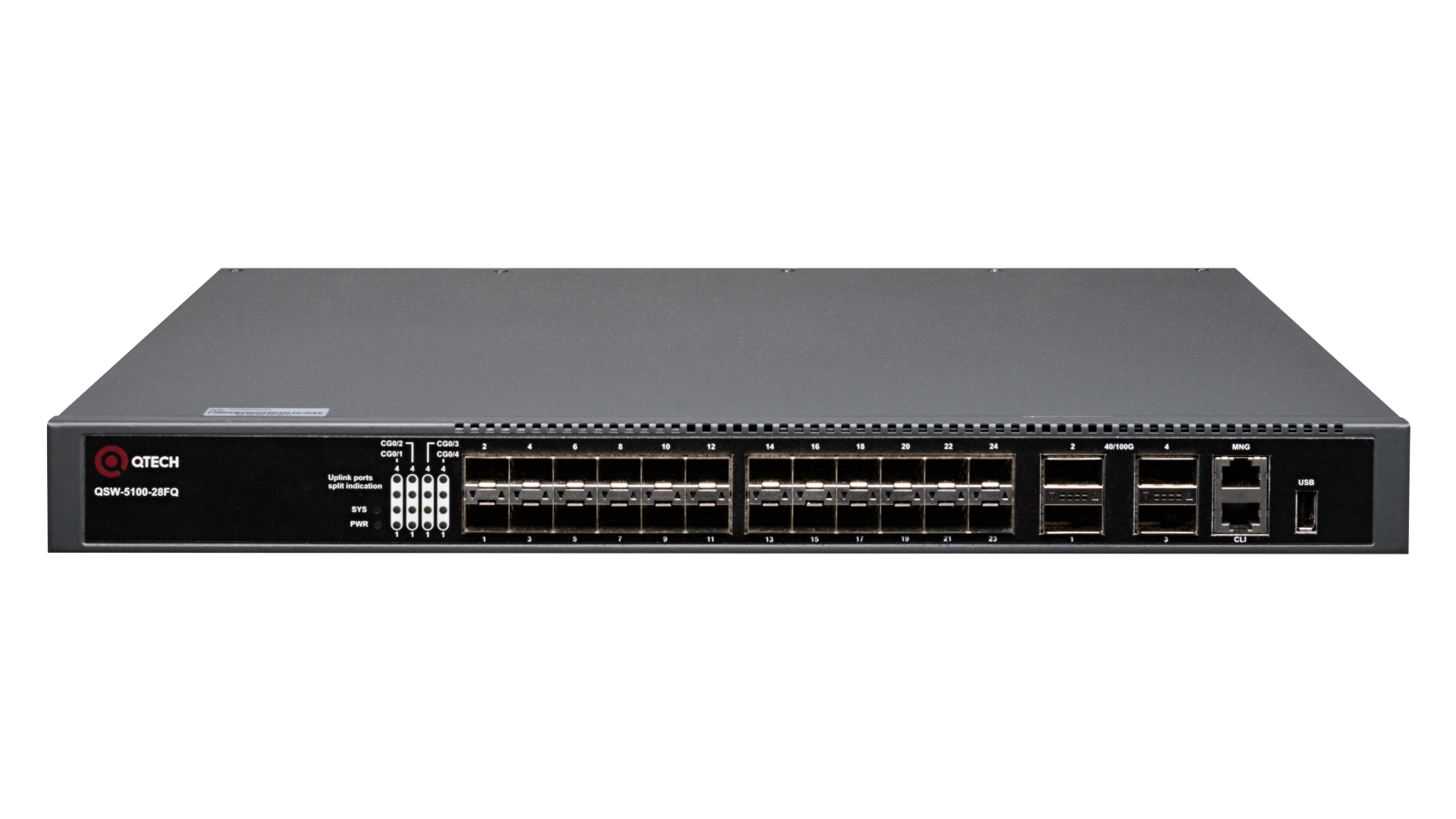

QSW-5100-28FQ
не производится
Управляемый стекируемый коммутатор уровня L3, 4 порта 100GbE QSFP28, 24 порта 10GbE SFP+, 4K VLAN, 32K MAC адресов, 1 порт USB 2.0, консольный порт, порт управления MGMT, 2 сменных БП (не входят в комплект) разъем питания на задней панели, 100-240В AC, размеры ШхГхВ (440x350x44 мм)
Описание
Серия QSW-5100 — это новое поколение коммутаторов TOR 10GE, ориентированных на высокопроизводительные вычисления, центры обработки данных и кампусы высшего класса. В серии QSW-5100 используется самая передовая архитектура аппаратного обеспечения.
Серия QSW-5100 может мультиплексировать данные 15000+ серверов 10GE. Разработанная на базе QTOS 6 — независимой программной платформы QTECH с правами интеллектуальной собственности, серия QSW-5100 обеспечивает высокую пропускную способность коммутации на уровне L2/L3/L4 за счет интеграции служб IPv6, MPLS VPN, сетевой безопасности, анализа потоков, виртуализации, высоконадежных технологий, включая бесперебойную пересылку, пороговую перезагрузку и защиту сети от включения интерфейса возврата, что выдает надежную работу после фабричного производства QSW-5100, гарантируя длительное время безотказной работы. Энергопотребление ниже 70Вт.
Технические характеристики
Интерфейсы
| Порты 100GbE QSFP28 | 4 порта |
| Порты 10GbE SFP+ | 24 порта |
| Порты консоли | 1 порт RS-232 (RJ45) |
| Порты управления MGMT | 1 порт |
| USB интерфейс | 1 порт USB 2.0 |
Конструкция

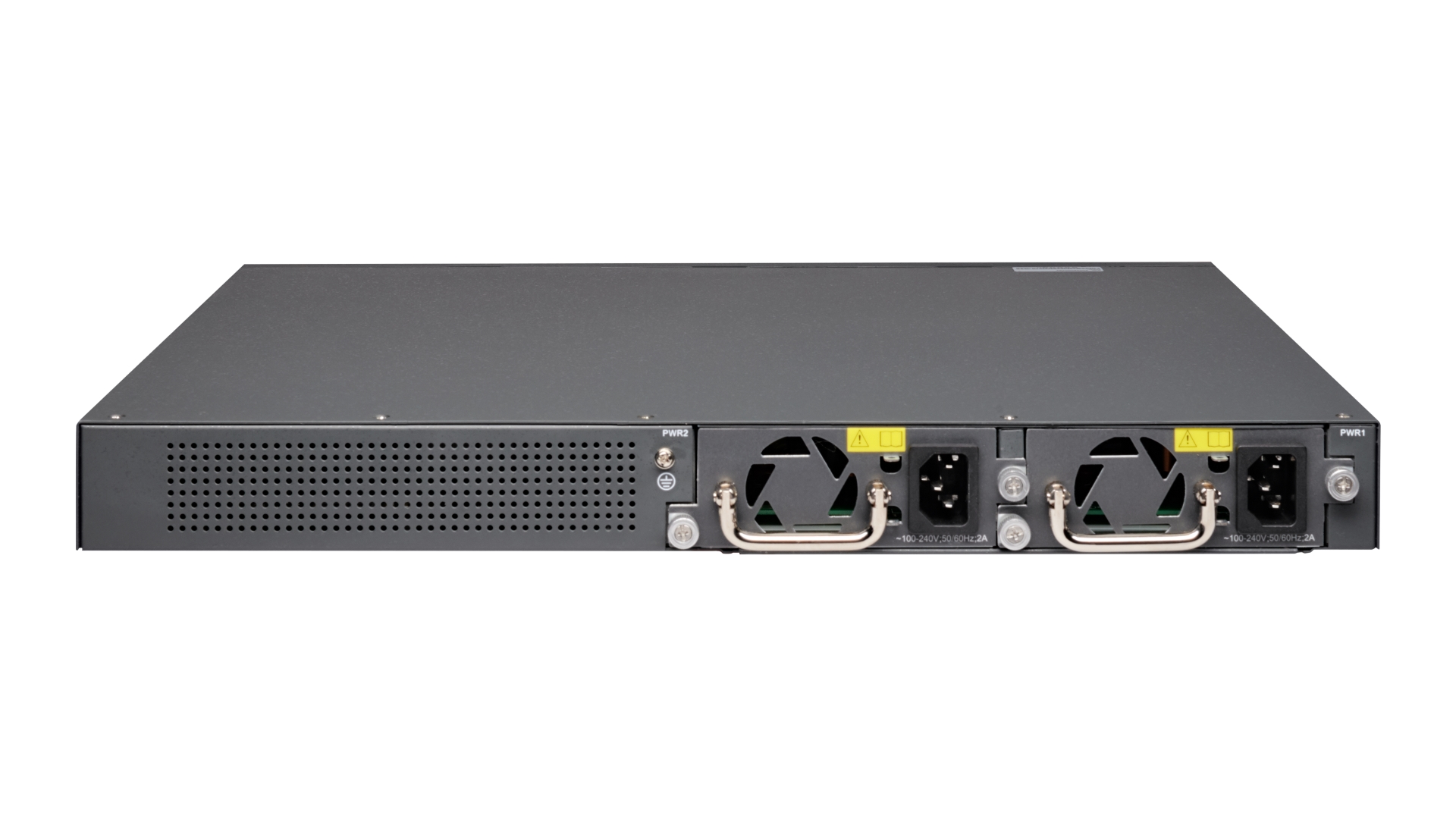

| Расположение разъемов питания | на задней панели |
Производительность
| Jumbo Frame | 9K |
| Коммутационная матрица | 800 Гбит/с |
| Пропускная способность | 600 Мпак/с (Mpps) |
| Размер таблицы MAC адресов | 32K MAC адресов |
| Размер таблицы маршрутизации | до 16K/12K (IPv4/IPv6) |
| Память | 1 ГБ RAM + 32 МБ |
Функциональность
| DHCP | DHCP-сервер, DHCP-клиент, DHCP snooping, DHCP relay, IPv6 DHCP relay |
| Spanning Tree Protocols | 802.1D STP, 802.1W RSTP, 802.1S MSTP, PVST, BPDU Guard, root Guard и loopback Guard |
| VLAN | 4K Active VLAN, MAC-based VLAN, Super VLAN, QinQ, GVRP, Private VLAN, VLAN Mapping 1 to 1, N to 1 |
| VLAN функционал | 4K VLAN |
| ACL | IPv4 standard ACL, IPv4 extended ACL, IPv6 extended ACL, MAC extended ACL, Time based ACL |
| QoS | CAR, HQoS, MAC/IP/TCP/UDP/ VLAN/COS/DSCP/TOS based QoS, 802.1P/DSCP priority re-labeling, SP, WRR, and “SP+WRR”, Tail-Drop, WRED, flow monitoring and traffic shaping |
| Агрегирование портов | до 32 групп, до 32 портов в каждой группе |
| Зеркалирование трафика | Port mirror, RSPAN |
| Протоколы маршрутизации IPv4 | Static, RIP v1/v2, PBR, OSPF, BGP |
| Протоколы маршрутизации IPv6 | Static, RIPng, PBR, OSPFv3, BGP4+ |
| Протоколы резервирования | 802.1D STP, 802.1W RSTP, 802.1S MSTP, PVST; Static/LACP link aggregation, Резервирование интерфейсов; EAPS and ERPS, URPF, CFM; VRRP, BFD for OSPF/BGP, ECMP |
| Стекирование | До 4 коммутаторов в стеке |
| Тип коммутации | Store and forward |
| Уровень коммутатора | L3 |
| Протоколы управления | CLI (Console/Telnet/SSH), WEB/SSL; Sysylog, NTP/SNTP, DDM, Traceroute, RMON; TFTP, FTP, SFTP, SNMPv1/v2c/v3 |
Физические характеристики
| EMC safety | CE, FCC, ROHS |
| MTBF | >100 000 часов |
Охлаждение
| Тип охлаждения | активное, 4 шт |
Питание
| Напряжение питания | 100-240В |
| Макс. потребляемая мощность, Вт | 70 |
| Резервирование блока питания | Да |
| Тип источника питания | 2 сменных БП (не входят в комплект) |
| Тип питания | AC |
Эксплуатационные характеристики
| Рабочая температура | 0°C~+50°C |
| При максимальной влажности | 95% без образования конденсата |
| Температура хранения | -20°C~+70°C |
Габариты
| Высота, U | 1 |
| Высота, мм | 44 |
| Глубина, мм | 350 |
| Ширина, мм | 440 |
| Вес, кг | 7,1 |
Прочее
| Гарантия | 3 года |
Техническая документация
pdf
Техническое описание
Общее описание, спецификация, информация для заказа
pdf
Руководство пользователя
Установка, подключение и обслуживание коммутатора, анализ неисправностей
ftp
Руководство пользователя
Руководства по установке и конфигурации (ftp ресурс)
Программное обеспечение
ftp
Ссылка на папку с прошивками
Микропрограммы (ftp ресурс)
Сертификаты и декларации
pdf
Сертификат
Соответствия правилам применения оборудования коммутации и маршрутизации пакетов информации
