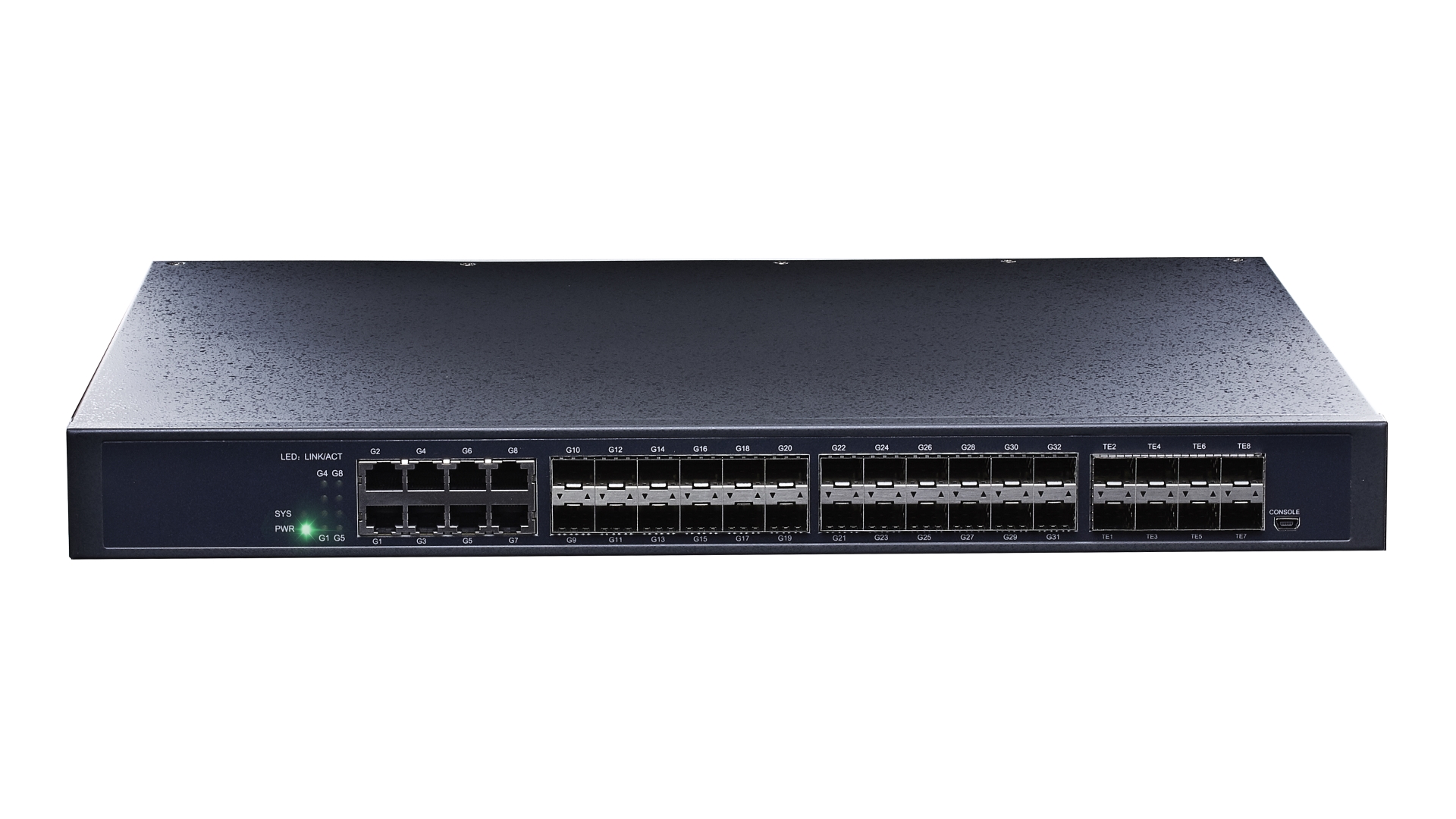

QSW-8330-40F
не производится
Управляемый стекируемый коммутатор уровня L3, 8 портов 10/100/1000BASE-T, 24 порта 100/1000BASE-X SFP, 8 портов 10GbE SFP+, 4K VLAN, 32K MAC адресов, консольный порт, 2 сменных БП (в комплекте 1) разъем питания на задней панели, 220В AC, размеры ШхГхВ (442x348x44 мм)
Описание
Коммутаторы серии QSW-8330 - ориентированы на построение кампусных, корпоративных и MAN сетей. Поддерживают множество сервисов, таких как IPv6, MPLS, VPN, имеют расширенные возможности управления и обладают большим спектром функций безопасности для обеспечения высокой производительности и масштабируемости. Коммутаторы идеально подходят для высокоплотных уровней агрегирования и уровня ядра, благодаря своей высокой производительности, доступности и надежности.
Ключевые особенности:
• Подходит для малых, средних и крупных корпоративных сетей: до 32 000 MAC-адресов.
• Высокая производительность и широкие возможности масштабируемости: пропускная способность коммутатора — до 256 Гбит/c, восемь 10GbE интерфейсов.
• Поддержка механизма многопротокольной коммутации MPLS.
• Поддержка протоколов динамической маршрутизации RIP, OSPF, ISIS, BGP.
• Использование дополнительного блока питания, позволяет осуществлять надёжное резервирование 1+1, замена компонентов в «горячем» режиме.
Ключевые особенности:
• Подходит для малых, средних и крупных корпоративных сетей: до 32 000 MAC-адресов.
• Высокая производительность и широкие возможности масштабируемости: пропускная способность коммутатора — до 256 Гбит/c, восемь 10GbE интерфейсов.
• Поддержка механизма многопротокольной коммутации MPLS.
• Поддержка протоколов динамической маршрутизации RIP, OSPF, ISIS, BGP.
• Использование дополнительного блока питания, позволяет осуществлять надёжное резервирование 1+1, замена компонентов в «горячем» режиме.
Видео
Технические характеристики
Интерфейсы
| Порты 10/100/1000BASE-T | 8 портов |
| Порты 100/1000BASE-X SFP | 24 порта |
| Порты 10GbE SFP+ | 8 портов |
| Порты консоли | 1 порт Mini USB (на передней панели) |
Конструкция
| Расположение разъемов питания | на задней панели |
Производительность
| Jumbo Frame | 9K |
| Коммутационная матрица | 224Gbps |
| Пропускная способность | 168.4 Мпак/с (Mpps) |
| Размер таблицы MAC адресов | 32K MAC адресов |
| Размер таблицы маршрутизации | До 32K |
| Память | 256 МБ RAM + 16 МБ |
Функциональность
| DHCP | IPv4/IPv6 DHCP Client, IPv4/IPv6 DHCP Server, IPv4/IPv6 DHCP Snooping, DHCP Relay Option 82 |
| Green Ethernet | IEEE 802.3az (Energy Efficient Ethernet) |
| Spanning Tree Protocols | 802.1D STP, 802.1W RSTP, 802.1S MSTP, Root Guard, BPDU Guard, BPDU Forwarding |
| VLAN | IEEE802.1Q, Voice VLAN, Port-based VLAN, Protocol-based VLAN, MAC-based VLAN, Private VLAN, QinQ, VLAN Mapping 1 to 1, N to 1, GVRP |
| VLAN функционал | 4K VLAN |
| ACL | IPv4 standard ACL, IPv4 extended ACL, IPv6 extended ACL, MAC extended ACL, Time based ACL |
| QoS | 8 очередей на порт, Маркировка трафика 802.1p/DSCP/TOS/ACL, Алгоритмы обработки очередей: SP, WRR, WFQ, SP+WRR, SP+WFQ, Метод congestion avoidance: WRED, Ограничение трафика на портах |
| Агрегирование портов | 8 групп / 8 портов |
| Зеркалирование трафика | Port Mirror |
| Надёжность и резервирование | 1+1 power backup, EAPS, VRRP, GR для OSPF, BGP, BFD для OSPF, BGP, ISSU |
| Протоколы маршрутизации IPv4 | Static, PBR, RIPv2, OSPFv2, ISIS, BGP4 |
| Протоколы маршрутизации IPv6 | Static, PBR, RIPng, OSPFv3, ISISv6, BGP4+ |
| Протоколы резервирования | 802.1D STP, 802.1W RSTP, 802.1S MSTP, PVST, Stack, LACP, EAPS, MEAPS, ERPS, Flex Link, VRRP, BFD, ECMP |
| Стекирование | Да |
| Тип коммутации | Store and forward |
| Уровень коммутатора | L3 |
| Функционал L2 | Статическая конфигурация MAC-адресов и динамическое изучение, Настраиваемое время жизни MAC-адреса, Возможность ограниченного изучения MAC-адресов, Поддержка фильтрации MAC-адресов, Black-hole MAC list |
| MPLS | LDP |
| Протоколы управления | TFTP/FTP, SNMPv1/v2c/v3, SNMP Trap, CLI (Console / Telnet / SSH), Web/SSL, Public & Private MIB interface RMON (1,2,3,9), Ping, Trace Route, Syslog, NTP, Multiple Configuration Files, VCT, DDM, ULDP, LLDP/LLDP MED |
Физические характеристики
| EMC safety | CE, RoHS |
| MTBF | > 40 000 часов |
| Грозозащита | 2 кВ |
Охлаждение
| Тип охлаждения | активное |
Питание
| Напряжение питания | 220В |
| Возможные типы питания | AC,DC,AC+AC,AC+DC,DC+DC |
| Макс. потребляемая мощность, Вт | 55 |
| Тип источника питания | 2 сменных БП (в комплекте 1) |
| Тип питания | AC |
Эксплуатационные характеристики
| Рабочая температура | 0°C~+50°C |
| При максимальной влажности | 90% без образования конденсата |
| Температура хранения | -20°C~+70°C |
Габариты
| Высота, U | 1 |
| Высота, мм | 44 |
| Глубина, мм | 348 |
| Ширина, мм | 442 |
| Вес, кг | 6,8 |
Логистика
| Вес упаковки (логистика), кг | 7 |
| Высота упаковки (логистика), мм | 94 |
| Длина упаковки (логистика), мм | 576 |
| Ширина упаковки (логистика), мм | 448 |
Прочее
| Гарантия | 3 года |
Техническая документация
pdf
Техническое описание
Общее описание, спецификация, информация для заказа
Программное обеспечение
ftp
Ссылка на папку с прошивками
Микропрограммы (ftp ресурс)
Сертификаты и декларации
pdf
Сертификат
Соответствия правилам применения оборудования коммутации и маршрутизации пакетов информации
pdf
Декларация
Соответствия требованиям ТР ТС 004-2011 О безопасности низковольтного оборудования, ТР ТС 020-2011 Электромагнитная совместимость технических средств
pdf
Декларация
Соответствия требованиям ТР ТС 004-2011, ТР ТС 020-2011, ТР ЕАЭС 037-2016
