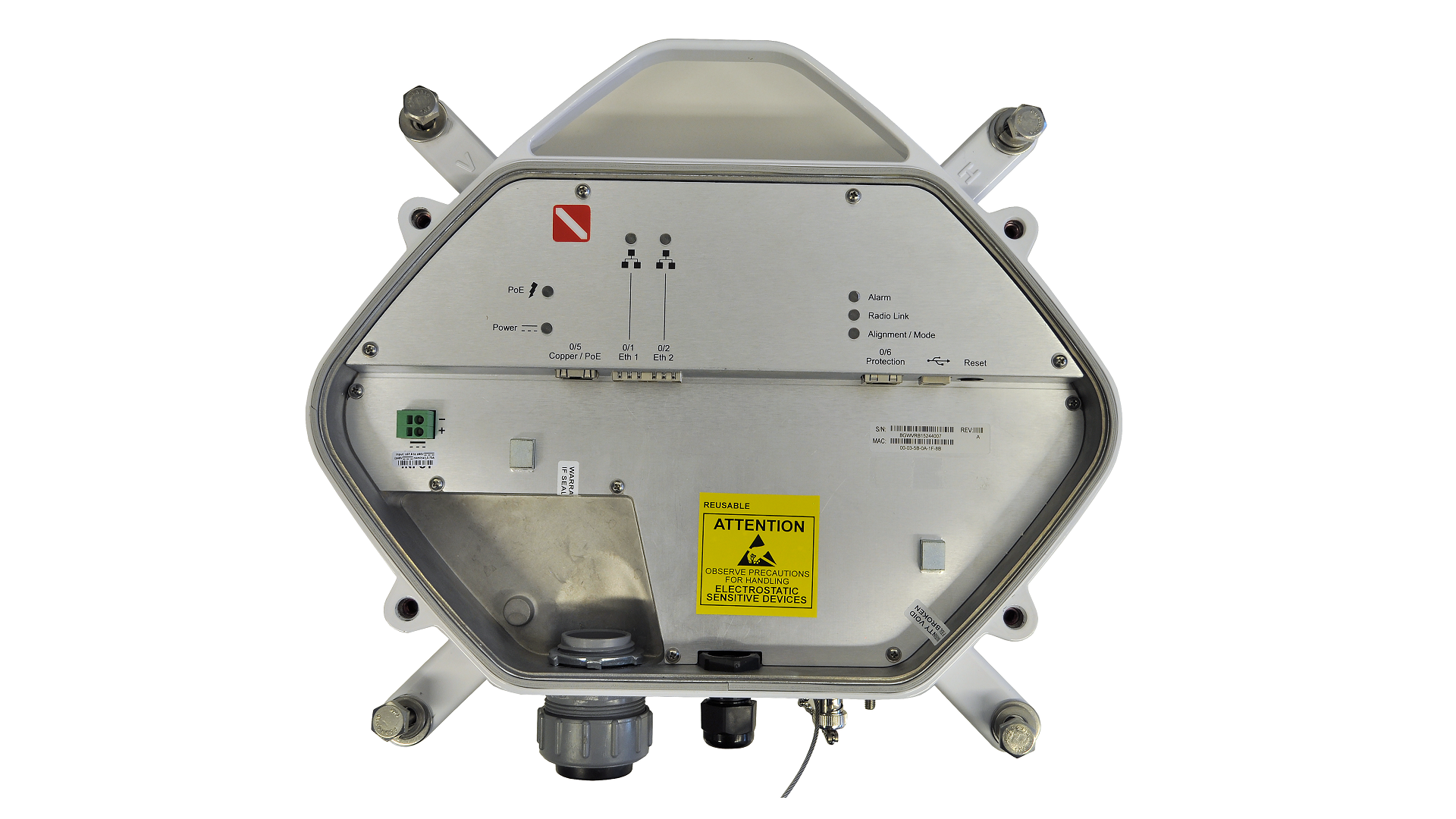

QWB-8000 v2
не производится
Радиомост 71-76 ГГц и 81-86 ГГц, скорость передачи 1 Гбит/c, диаметр антенны 0.3 или 0.6 м, 1 порт 10/100BASE-T, тип модуляции BPSK/QPSK, внешний БП (не входит в комплект), питание PoE, 48В DC
Описание
QWB-8000-v2 - высокоскоростная беспроводная радиорелейная система, предназначенная для прозрачной передачи Gigabit Ethernet (до 1 ГБит/с полный дуплекс) через радиоканал.
Система представляет собой полностью наружное решение, в котором все активное оборудование расположено в непосредственной близости от антенной системы. Конструктивно, РРЛ состоит из пары наружных блоков, к которым подведены кабели питания (-48 В), трафика и управления; и антенны, которая непосредственно прикреплена к наружному блоку. В качестве антенн используются параболические двухзеркальные антенны Кассегрена диаметрами 0,3 м и 0,6 м.
Типовая дальность связи для антенн 0,3 м составляет 3-7 км, а для антенн 0.6 м - 7-10 км. Точная дальность связи зависит от климатических условий региона и требуемой надежности канала связи. Особенностью диапазонов частот 71-76 и 81-86 ГГц является небольшое, по сравнению с соседними диапазонами, затухание в атмосфере. Типовое затухание составляет 1-2 дБ/км, в связи с чем возможно достигнуть указанные выше дальности, сохраняя высокое качество и доступность канала связи.
Система представляет собой полностью наружное решение, в котором все активное оборудование расположено в непосредственной близости от антенной системы. Конструктивно, РРЛ состоит из пары наружных блоков, к которым подведены кабели питания (-48 В), трафика и управления; и антенны, которая непосредственно прикреплена к наружному блоку. В качестве антенн используются параболические двухзеркальные антенны Кассегрена диаметрами 0,3 м и 0,6 м.
Типовая дальность связи для антенн 0,3 м составляет 3-7 км, а для антенн 0.6 м - 7-10 км. Точная дальность связи зависит от климатических условий региона и требуемой надежности канала связи. Особенностью диапазонов частот 71-76 и 81-86 ГГц является небольшое, по сравнению с соседними диапазонами, затухание в атмосфере. Типовое затухание составляет 1-2 дБ/км, в связи с чем возможно достигнуть указанные выше дальности, сохраняя высокое качество и доступность канала связи.
Технические характеристики
Интерфейсы
| Порты 10/100BASE-T PoE | 1 порт |
| Порты 1000BASE-X SFP | 1 порт |
| Порты консоли | 1 порт RS-232 (RJ45) |
Передача данных
| Мощность передатчика, дБм | 20 |
| Мощность передатчика, мВт | 100 |
| Скорость передачи данных, Гбит/c | 1 |
| Частотный диапазон | 71-76 ГГц и 81-86 ГГц |
| Тип модуляции | BPSK/QPSK |
Конструкция
| Индикация | Уровень принимаемого сигнала, Питание, Tx Data, LOS, перегрузка, Data In, Data Out |
| Варианты крепления | Монтаж на трубостойку, непосредственное подключение радиомодуля к антенне |
Функциональность
| Протоколы управления | Прямое подключение через RS232, telnet, встроенный Web браузер, SNMP v. 1,2,3 с открытыми MIB |
Питание
| Напряжение питания | 48В |
| PoE+ | Да |
| Макс. потребляемая мощность, Вт | 20 |
| Тип источника питания | внешний БП (не входит в комплект), питание PoE |
| Тип питания | DC |
Эксплуатационные характеристики
| Рабочая температура | -40°C~+60°C |
| При максимальной влажности | 95% без образования конденсата |
Прочее
| Гарантия | 1 год |
