Как выполнить консольное подключение к оборудованию QTECH
Этот обзор рассказывает о консольном подключении компьютера или ноутбука к телекоммуникационному сетевому оборудованию производства компании QTECH на примере коммутатора QSW-3750-28F-AC. Это нужно для выполнения базовых настроек и мониторинга состояния устройства. Физическое соединение производится с помощью консольного кабеля, предназначенного для соединения PC с коммутатором, маршрутизатором, модемом, IP-телефоном и другими устройствами. Кабель терминирован разъемами 8P8C и RS232.
Кабель входит в комплектацию оборудования, оснащенного портом 8P8C для консольного подключения с соответствующей маркировкой, надписью CONSOLE.
Рассмотрим алгоритм действий по консольному подключению:
-
подключаем устройство к сети 220 вольт, используя штатный кабель электропитания;
-
подсоединяем консольный кабель к соответствующему порту устройства и COM-порту ( или к USB-порту с адаптером USB/COM) компьютера;
-
после выполнения физического соединения необходимо воспользоваться утилитой для консольного подключения, например, PuTTY или SecureCRT.
Приведем пример настройки соединения утилиты PuTTY:
-
открываем программу и видим открывшееся пользовательское окно;
-
последовательно выбираем раздел Session, строку Connection type и требуемый протокол связи – Serial;
-
в строке Serial line выбираем порт, к которому подключен консольный кабель. Для определения конкретного компьютерного порта требуется предварительно войти в “Диспетчер устройств” на компьютере и посмотреть порт в разделе “Порты (COM и LPT)”;
-
затем указываем нужное значение скорости в окошке Speed. Обычно выбирается Чаще всего используется скорость 9600 бод. Информацию по настройке скорости можно прочитать в техническом описании или в инструкции по настройке оборудования;
-

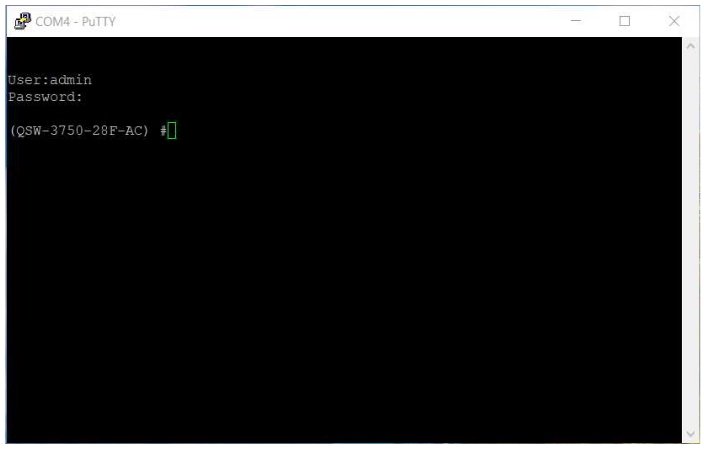

нажимаем кнопку Open и видим окно, приглашающее приглашения в консоль;
-
вводим логин и пароль для авторизации, параметры для первого подкючения указаны в в инструкции по настройке оборудования;
- Вы великолепны!
Вид оборудования: Ethernet коммутаторы
