Настройка QinQ Port Base на QSW-2850/3470/4610
QinQ Port Base, это режим который позволяет провайдерам выделить под определенного клиента 1 конкретный Vlan в L2 сегменте, в котором клиент сможет передавать любой необходимый ему трафик. При этом полностью игнорируются все метки Vlan исходного трафика и к любому фрейму клиентского трафика добавляется верхняя метка «несущего» провайдерского Vlan’a.
Настраивать данный режим мы будем на оборудовании QSW-3470, но для QSW-4610 и QSW-2850 настройки будут аналогичны.
Для тестовой схемы мы будем использовать следующую схему соединения :
То есть мы настроили 3 Access порта для создания трафика в необходимых по нашему ТЗ Vlan и один порт в mode trunk для того что бы передать его в наш целевой QSW-3470-52T-AC. Теперь приступим к настройке непосредственно целевого коммутатора.png "Port Base vlan35(QSW-3470).png")
Настраивать данный режим мы будем на оборудовании QSW-3470, но для QSW-4610 и QSW-2850 настройки будут аналогичны.
Для тестовой схемы мы будем использовать следующую схему соединения :
ТЗ
Необходимо весь трафик всех Vlan приходящий на целевой 3470-52T-AC через Интерфейс Ethernet 1/0/1 обработать направив в порт QinQ Uplink с дополнительным верхним тегом Vlan 150
В качестве источника тегированного трафика я буду использовать QSW-3470-28T-LPOE-AC. Его конфигурация крайне проста и выглядит следующим образом:
no service password-encryption
!
hostname QSW-3470-28T-LPOE-AC
sysLocation Russia, Moscow, Ryabinovaya st, 26 bld 2
sysContact +7(495)797-3311
!
username admin privilege 15 password 0 admin
!
!
!
!
!
vlan 1;5;15;35
!
Interface Ethernet1/0/1
switchport access vlan 5
!
Interface Ethernet1/0/2
switchport access vlan 15
!
Interface Ethernet1/0/3
switchport access vlan 35
!
Interface Ethernet1/0/4
switchport mode trunk
!
Interface Ethernet1/0/5
!
—————-//—————-
…..
—————-//—————-
Interface Ethernet1/0/27
!
Interface Ethernet1/0/28
!
interface Vlan1
!
no login
!
end
То есть мы настроили 3 Access порта для создания трафика в необходимых по нашему ТЗ Vlan и один порт в mode trunk для того что бы передать его в наш целевой QSW-3470-52T-AC. Теперь приступим к настройке непосредственно целевого коммутатора
- Поднимаем MTU и объявляем VLAN’ы которые необходы
Так как это тестовая конфигурация, я не стесняясь поднимаю до 9000 и объявляю первые 500 Vlan
QSW-3470-52T-AC(config)#mtu 9000
QSW-3470-52T-AC(config)#vlan 1-500
- Настраиваем интерфейс QinQ Uplink, в нашем случае согласно схеме это Ethernet1/0/2
QSW-3470-52T-AC(config)#Interface Ethernet1/0/2
QSW-3470-52T-AC(config-if-ethernet1/0/2)# switchport mode trunk
Set the port Ethernet1/0/2 mode Trunk successfully
- Настраиваем принимающий интерфейс, отмечу что для работы в режиме Port Base необходимо принимать портом в режиме Mode Access.
QSW-3470-52T-AC(config)#Interface Ethernet1/0/1
QSW-3470-52T-AC(config-if-ethernet1/0/1)# dot1q-tunnel enable
QSW-3470-52T-AC(config-if-ethernet1/0/1)# switchport access vlan 150
Set the port Ethernet1/0/1 access vlan 150 successfully
И того конечная конфигурация выглядит так
QSW-3470-52T-AC#show running-config
!
no service password-encryption
!
hostname QSW-3470-52T-AC
sysLocation Russia, Moscow, Ryabinovaya st, 26 bld 2
sysContact +7(495)797-3311
!
username admin privilege 15 password 0 admin
!
!
!
!
!
!
!
!
!
mtu 9000
!
!
vlan 1-500
!
Interface Ethernet1/0/1
dot1q-tunnel enable
switchport access vlan 150
!
Interface Ethernet1/0/2
switchport mode trunk
!
Interface Ethernet1/0/3
!
Interface Ethernet1/0/4
!
—————-//—————-
…..
—————-//—————-
!
Interface Ethernet1/0/50
!
Interface Ethernet1/0/51
!
Interface Ethernet1/0/52
!
interface Vlan1
ip dhcp-client enable
!
no login
!
end
Остается только пустить трафик в разных Vlan c источника и посмотреть на результат.
.png "Port Base vlan5(QSW-3470).png")

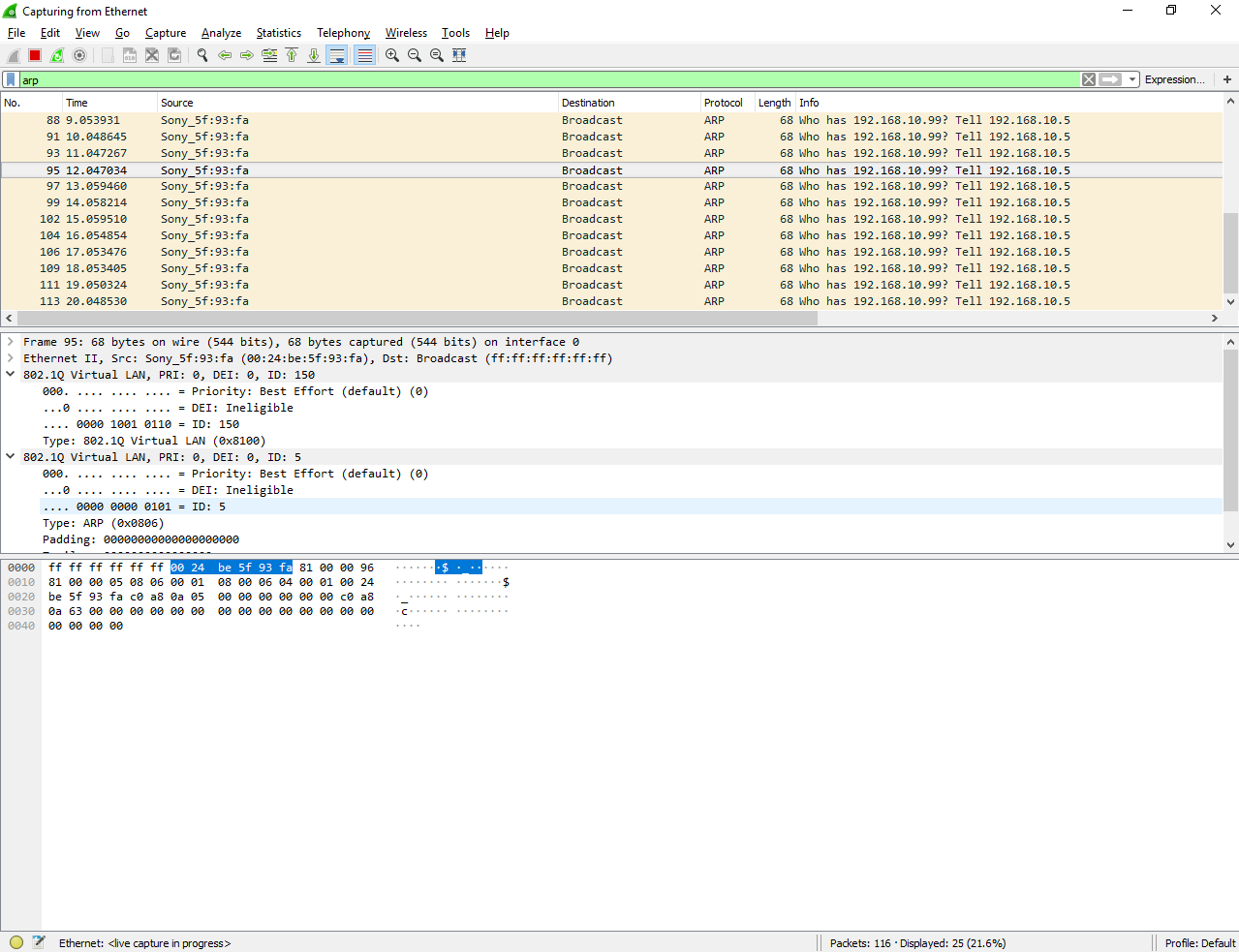

Трафик в Vlan 5
.png "Port Base vlan15(QSW-3470).png")
Трафик в Vlan 15
Трафик в Vlan 35
Смотрите так же
Важно!
Данная статья актуальна для устройств с версией ПО 8.2.3.333(QSW-4530/4900) и выше и 8.2.1.245(QSW-3750/4610/3420) и выше.
Перед обновление ознакомьтесь со статьёй "Переход на новую версию SSH"
Для настройки функционала подключения к коммутатору QSW-4530 с использование публич...
Разберем настройку TACACS+ на примере следующей схемы:
Пример конфигурации:
SWITCH#config
SWITCH(config)# tacacs-server authentication host 172.16.1.3 key 0 test primary
SWITCH(config)# authentication line vty login tacacsSWITCH(config)# tacacs-server timeout 30 Разберем команды п...
На коммутаторе QSW-4530 существует несколько вариантов назначения динамического vlan в данной статье рассмотрим mac-vlan и protocol-vlan.
MAC-VLAN
MAC-VLAN - используется для назначения номера Vlan в зависимости от мак-адреса клиента.
В качестве примера выполним наст...
К списку
