Настройка Multiprocess STP на коммутаторах QSW-4530
Multiprocess Spanning Tree Protocol- это механизм, позволяющий создавать несколько независимых колец (STP, RSTP, MSTP), для каждого из которых выбирается свой собственный корневой мост и назначаются роли портов.

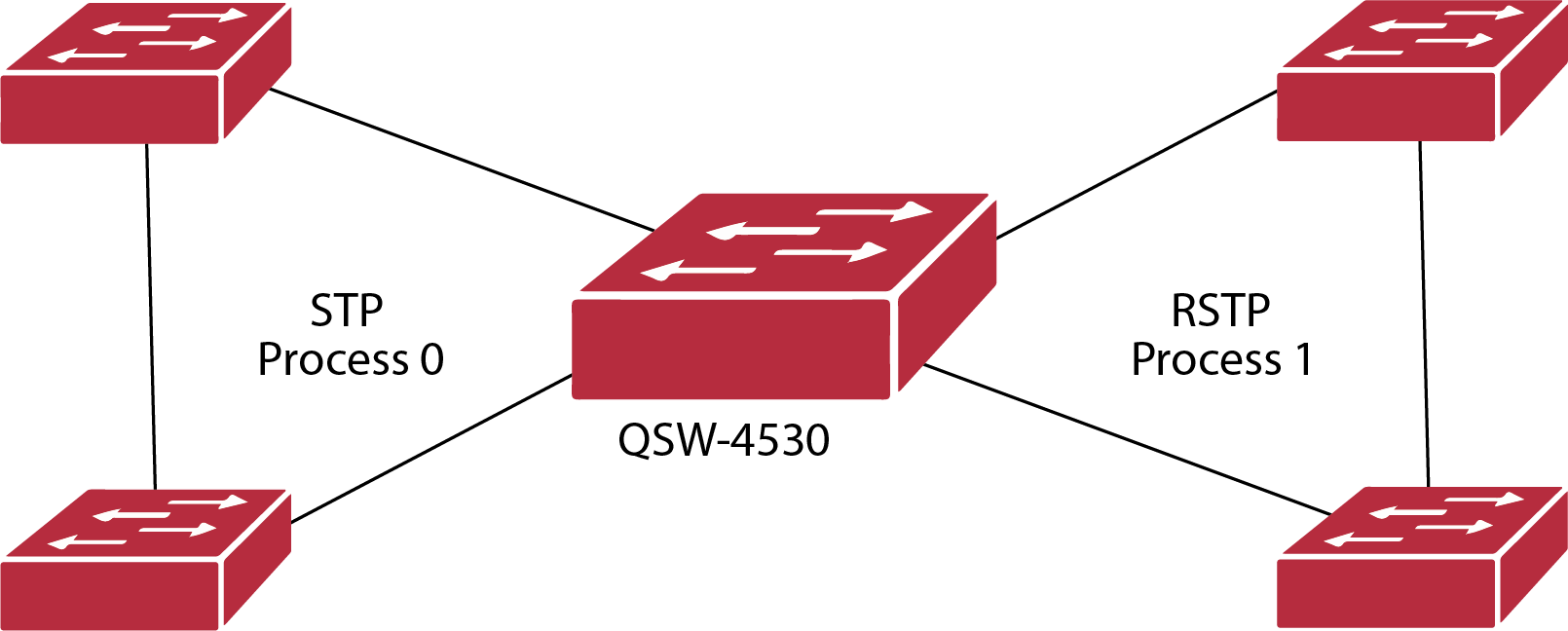

Данная технология позволяет одному коммутатору участвовать сразу в нескольких топологиях c разными типами протоколами STP.
Рассмотрим пример настройки.
Данная технология позволяет одному коммутатору участвовать сразу в нескольких топологиях c разными типами протоколами STP.
Рассмотрим пример настройки.
Включим STP.
QSW-4530-54TX-POE(config)#spanning-tree
Выберем нужный режим.
QSW-4530-54TX-POE(config)#spanning-tree mode rstpПо умолчанию используется процесс 0. Создадим процесс 1.
QSW-4530-54TX-POE(config)#spanning-tree process 1В нем так же можно задать вариацию STP.
QSW-4530-54TX-POE(config-mstp-process-1)#spanning-tree mode stpДобавим интерфейсы в нужный процесс. Интерфейсы, для которых не указаны нужные процессы, участвуют в процессе 0.
QSW-4530-54TX-POE(config)#interface ethernet 1/0/1 QSW-4530-54TX-POE(config-if-ethernet1/0/1)#spanning-tree binding-process 1 QSW-4530-54TX-POE(config)#interface ethernet 1/0/2 QSW-4530-54TX-POE(config-if-ethernet1/0/2)#spanning-tree binding-process 1Проверим работу.
QSW-4530-54TX-POE#show spanning-tree*********************************** Process 0 ***********************************
-- RSTP Bridge Config Info --
Standard : IEEE 802.1w
Bridge MAC : 00:1f:ce:21:6c:93
Bridge Times : Max Age 20, Hello Time 2, Forward Delay 15
Force Version: 2
#############################################################
Self Bridge Id : 32768.00:1f:ce:21:6c:93
Root Id : this switch
Ext.RootPathCost : 0
Root Port ID : 0
PortName ID ExtRPC State Role DsgBridge DsgPort
-------------- -------- --------- --- ---- ------------------ -------
Ethernet1/0/3 128.003 0 FWD DSGN 32768.001fce216c93 128.00
Ethernet1/0/4 128.004 0 FWD DSGN 32768.001fce216c93 128.004
*********************************** Process 1 ***********************************
-- STP Bridge Config Info --
Standard : IEEE 802.1d
Bridge MAC : 00:1f:ce:21:6c:93
Bridge Times : Max Age 20, Hello Time 2, Forward Delay 15
Force Version: 0
#############################################################
Self Bridge Id : 32768.00:1f:ce:21:6c:93
Root Id : this switch
Ext.RootPathCost : 0
Root Port ID : 0
PortName ID ExtRPC State Role DsgBridge DsgPort
-------------- -------- --------- --- ---- ------------------ -------
Ethernet1/0/1 128.001 0 FWD DSGN 32768.001fce216c93 128.001
Ethernet1/0/2 128.002 0 FWD DSGN 32768.001fce216c93 128.002
Смотрите так же
Важно!
Данная статья актуальна для устройств с версией ПО 8.2.3.333(QSW-4530/4900) и выше и 8.2.1.245(QSW-3750/4610/3420) и выше.
Перед обновление ознакомьтесь со статьёй "Переход на новую версию SSH"
Для настройки функционала подключения к коммутатору QSW-4530 с использование публич...
Разберем настройку TACACS+ на примере следующей схемы:
Пример конфигурации:
SWITCH#config
SWITCH(config)# tacacs-server authentication host 172.16.1.3 key 0 test primary
SWITCH(config)# authentication line vty login tacacsSWITCH(config)# tacacs-server timeout 30 Разберем команды п...
На коммутаторе QSW-4530 существует несколько вариантов назначения динамического vlan в данной статье рассмотрим mac-vlan и protocol-vlan.
MAC-VLAN
MAC-VLAN - используется для назначения номера Vlan в зависимости от мак-адреса клиента.
В качестве примера выполним наст...
К списку
